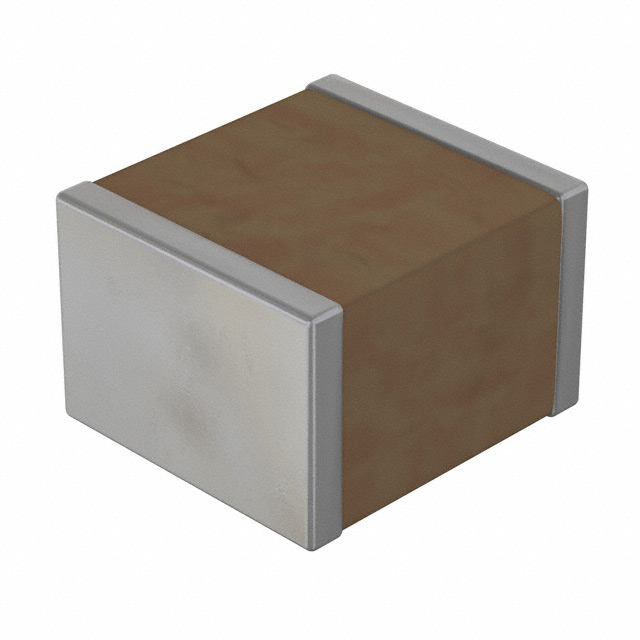

RF2525B683K251KX145T

Active

Knowles Novacap

CAP CER 0.068UF 250V X7R 2525

Deep-Dive with AI

Search across all available documentation for this part.

RF2525B683K251KX145T

Active

Knowles Novacap

CAP CER 0.068UF 250V X7R 2525

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RF2525B Series

0.068 µF ±10% 250V Ceramic Capacitor X7R 2525 (6464 Metric)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RF2525B683K251KX145T	RF2525B Series

Applications	General Purpose	General Purpose
Capacitance	0.068 µF	0.018 - 10000 µF
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2525 (6464 Metric)	2525 (6464 Metric)
Size / Dimension [x]	0.23 in	0.23 in
Size / Dimension [x]	5.84 mm	5.84 mm
Size / Dimension [y]	6.35 mm	6.35 mm
Size / Dimension [y]	0.25 in	0.25 in
Temperature Coefficient	X7R	X7R
Thickness (Max)	4.19 mm	4.19 mm
Thickness (Max) [Max]	0.165 "	0.165 "
Tolerance	10 %	10 %
Voltage - Rated	250 V	100 - 300 V

RF2525B Series

CAP CER 0.47UF 150V X7R 2525

Part	Tolerance	Voltage - Rated	Mounting Type	Temperature Coefficient	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Thickness (Max) [Max]	Thickness (Max)
Knowles Novacap RF2525B474K151KX145T	10 %	150 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in	0.47 µF	0.165 "	4.19 mm
Knowles Novacap RF2525B824K101KX165T	10 %	100 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in	0.82 µF	0.165 "	4.19 mm
Knowles Novacap RF2525B683K251KX145T	10 %	250 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in	0.068 µF	0.165 "	4.19 mm
Knowles Novacap RF2525B334K151KX145T	10 %	150 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in	0.33 µF	0.165 "	4.19 mm
Knowles Novacap RF2525B473K251KX145T	10 %	250 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in		0.165 "	4.19 mm
Knowles Novacap RF2525B105K101KX165T	10 %	100 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in	1 µF	0.165 "	4.19 mm
Knowles Novacap RF2525B684K151KX145T	10 %	150 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in	680 nF	0.165 "	4.19 mm
Knowles Novacap RF2525B183K301KX145T	10 %	300 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in	0.018 µF	0.165 "	4.19 mm
Knowles Novacap RF2525B103K301KX145T	10 %	300 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in	10000 pF	0.165 "	4.19 mm
Knowles Novacap RF2525B564K151KX145T	10 %	150 V	MLCC, Surface Mount	X7R	2525 (6464 Metric)	General Purpose	-55 °C	125 °C	0.23 in	6.35 mm	5.84 mm	0.25 in	0.56 µF	0.165 "	4.19 mm
