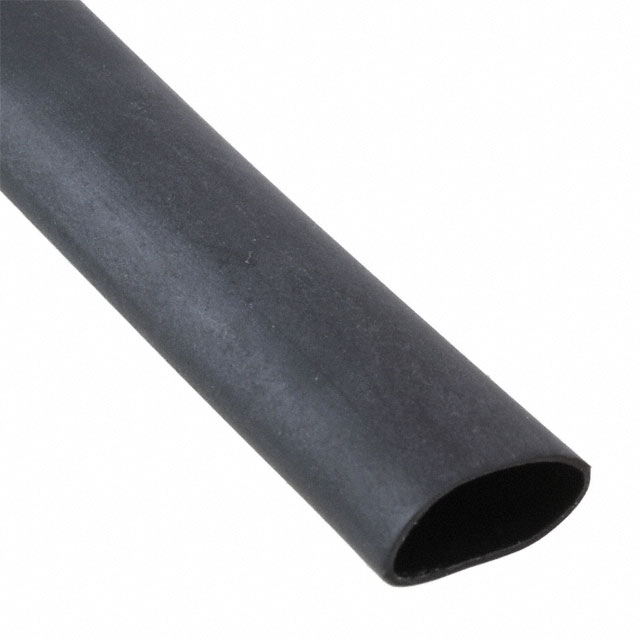

Q5-3X-1/2-01-QB6IN-14

Active

Qualtek

HEATSHRINK 1/2"-6" BLACK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1/2"-6" BLACK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-3X-1/2-01-QB6IN-14

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Inner Diameter - Supplied [diameter]	0.472 in
Inner Diameter - Supplied [diameter]	11.99 mm
Length	152.4 mm
Length	6 "
Length	0.5 '
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness [custom]	0.063 "
Recovered Wall Thickness [custom]	1.6 mm
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Length	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Color	Shrink Temperature	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Length [x]	Length [x]
Qualtek Q5-3X-1/2-01-SS25M	-55 °C	125 °C	Polyolefin (PO)	Tubing Flexible	1	3	25 m	82 ft	0.063 "	1.6 mm	3.99 mm	0.157 in	-50 °F -10 °C	40 °C	Adhesive Lined Flame Retardant	Black	80 °C	60 Months	0.472 in	11.99 mm
Qualtek Q5-3X-1/2-01-QB6IN-14	-55 °C	125 °C	Polyolefin (PO)	Tubing Flexible	1	3	152.4 mm		0.063 "	1.6 mm	3.99 mm	0.157 in	-50 °F -10 °C	40 °C	Adhesive Lined Flame Retardant	Black	80 °C	60 Months	0.472 in	11.99 mm	6 "	0.5 '
Qualtek Q5-3X-1/2-01-QB48IN-5	-55 °C	125 °C	Polyolefin (PO)	Tubing Flexible	1	3			0.063 "	1.6 mm	3.99 mm	0.157 in	-50 °F -10 °C	40 °C	Adhesive Lined Flame Retardant	Black	80 °C	60 Months	0.472 in	11.99 mm			1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.472" (11.99mm) 3 to 1 Black 0.500' (152.40mm, 6.00")
