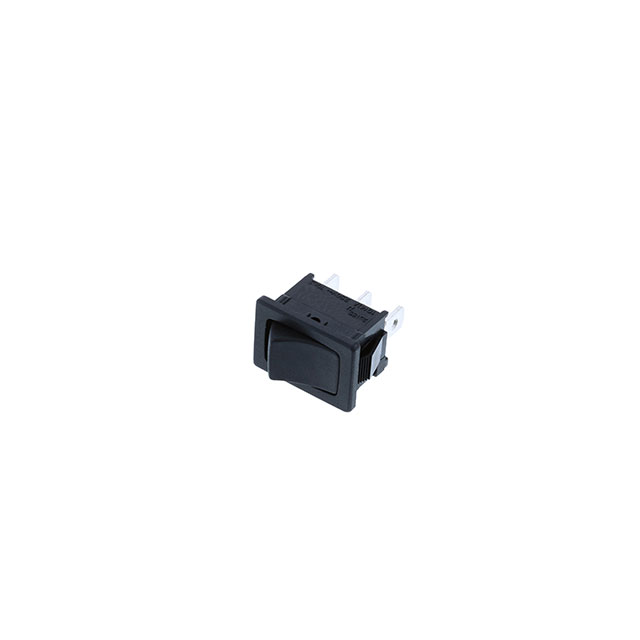

RF1-1E-DC-2-B

Active

Switch Components

SWITCH ROCKER SPDT 10A 125V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH ROCKER SPDT 10A 125V

Part	Switch Function	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Voltage Rating - DC	Actuator Marking	Electrical Life	Color - Actuator/Cap	Termination Style	Mounting Type	Mechanical Life	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency
Switch Components RF1-1E-DC-2-B	On-Mom	16 A, 16 A	Concave (Curved)	125 V	12 V	No Marking	6000 Cycles	Black	Quick Connect - 0.187" (4.7mm)	Panel Mount, Snap-In	10000 Steps	SPDT	13 mm	19.2 mm	-25 °C	85 °C	CSA, cURus, ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.95

General part information

Rocker Switch SPDT 16 (AC), 16 (DC) 125 V Panel Mount, Snap-In
