SSF-LXH103YD

Active

Lumex Opto/Components Inc.

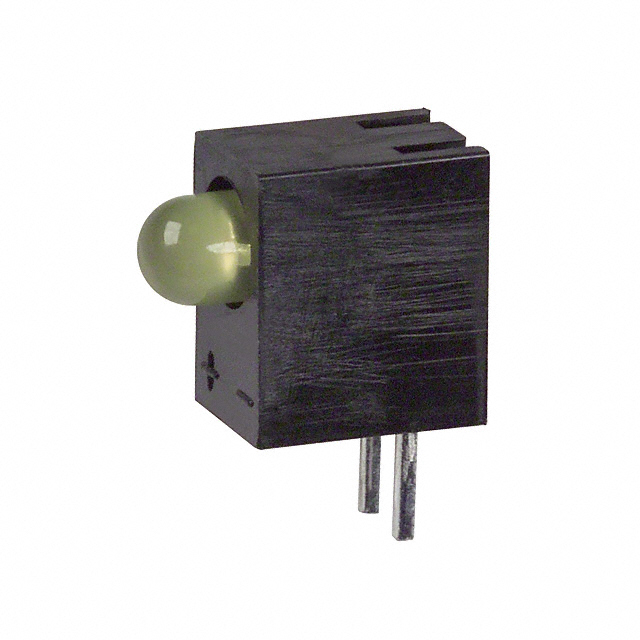

LED CBI 3MM YELLOW RA PC MNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH103YD

Active

Lumex Opto/Components Inc.

LED CBI 3MM YELLOW RA PC MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH103YD	SSF-LXH103 Series

Color	Yellow	Blue, Green, Red, Yellow, White
Configuration	Single	Single
Current	-	12 mA
Current	-	25 mA
Current	-	25 mA
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Size	-	3 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused, White, Green
Millicandela Rating	30 mcd	9 - 1200 mcd
Millicandela Rating	-	8 mcd
Millicandela Rating	-	4 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	8 - 80 °
Voltage Rating	2.1 V	1.8 - 5 V
Wavelength - Peak	585 nm	550 - 660 nm
Wavelength - Peak	-	565 - 700 nm

SSF-LXH103 Series

LED CBI 3MM BLU RA PCMNT

Part	Mounting Type	Viewing Angle	Millicandela Rating	Color	Lens Style	Configuration	Lens Type	Lens Size	Lens Size	Wavelength - Peak	Voltage Rating	Lens Size [diameter]	Current
Lumex Opto/Components Inc. SSF-LXH103USBD	Through Hole, Right Angle	60 °	80 mcd	Blue	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1
Lumex Opto/Components Inc. SSF-LXH103GD	Through Hole, Right Angle	60 °	30 mcd	Green	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	565 nm	2.1 V
Lumex Opto/Components Inc. SSF-LXH103SRD	Through Hole, Right Angle	60 °	80 mcd	Red	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	660 nm	1.8 V
Lumex Opto/Components Inc. SSF-LXH103SYD	Through Hole, Right Angle	60 °	100 mcd	Yellow	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	590 nm	2 V
Lumex Opto/Components Inc. SSF-LXH103LGD	Through Hole, Right Angle	80 °	15 mcd	Green	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	565 nm	2.1 V
Lumex Opto/Components Inc. SSF-LXH103UWC	Through Hole, Right Angle	34 °	1200 mcd	White		Single	Diffused, White			550 nm	3.6 V
Lumex Opto/Components Inc. SSF-LXH103ID	Through Hole, Right Angle	60 °	30 mcd	Red	Round with Domed Top	Single	Diffused, Tinted			635 nm	2.1 V	3 mm
Lumex Opto/Components Inc. SSF-LXH103UWW	Through Hole, Right Angle	30 °	500 mcd	White		Single	Diffused, White			550 nm	3.6 V
Lumex Opto/Components Inc. SSF-LXH103GD-5V	Through Hole, Right Angle	8 °	80 mcd	Green	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	565 nm	5 V		12 mA
Lumex Opto/Components Inc. SSF-LXH103ID-5V	Through Hole, Right Angle	80 °	9 mcd	Red	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	635 nm	5 V		12 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.69
		10	$ 0.45
		500	$ 0.30
		1000	$ 0.23
		5000	$ 0.20
		10000	$ 0.19

Description

General part information

SSF-LXH103 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
