C3CPS-3436G

Active

CW Industries

IDC CABLE - CKC34S/AE34G/CPC34S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKC34S/AE34G/CPC34S

Technical Specifications

Parameters and characteristics for this part

Part	Features	Usage	Number of Positions	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Shielding	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Cable Termination	Connector Type	Color	Contact Finish	Length [x]	Length [x]
CW Industries C3CPS-3406M	Polarizing Key	Board In	34	152.4 mm	6 "	0.5 '	2.54 µm	100 µin	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Socket to PCB	Multiple Ribbon	Tin
CW Industries C3CPS-3436M	Polarizing Key	Board In	34				2.54 µm	100 µin	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Socket to PCB	Multiple Ribbon	Tin	3 ft	914.4 mm
CW Industries C3CPS-3418M	Polarizing Key	Board In	34				2.54 µm	100 µin	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Socket to PCB	Multiple Ribbon	Tin	1.5 ft	457.2 mm
CW Industries C3CPS-3436G	Polarizing Key	Board In	34				2.54 µm	100 µin	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Socket to PCB		Tin	3 ft	914.4 mm
CW Industries C3CPS-3418G	Polarizing Key	Board In	34				2.54 µm	100 µin	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	IDC	Socket to PCB		Tin	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

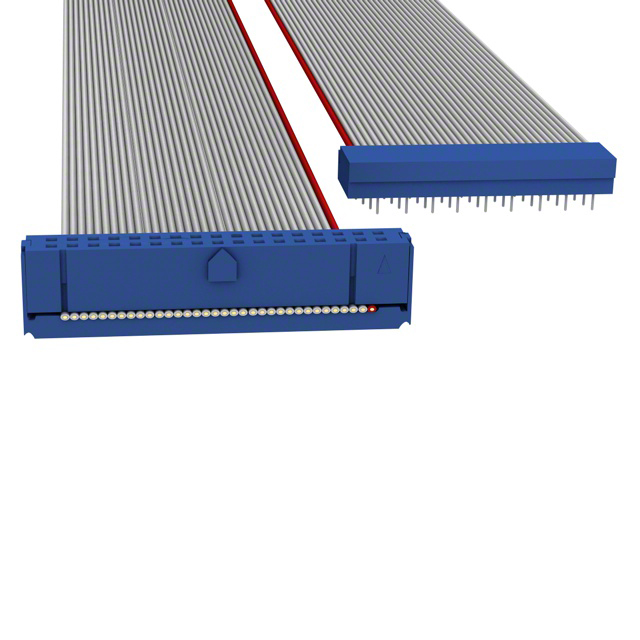

34 Position Cable Assembly Rectangular Socket to PCB 3.00' (914.40mm)
