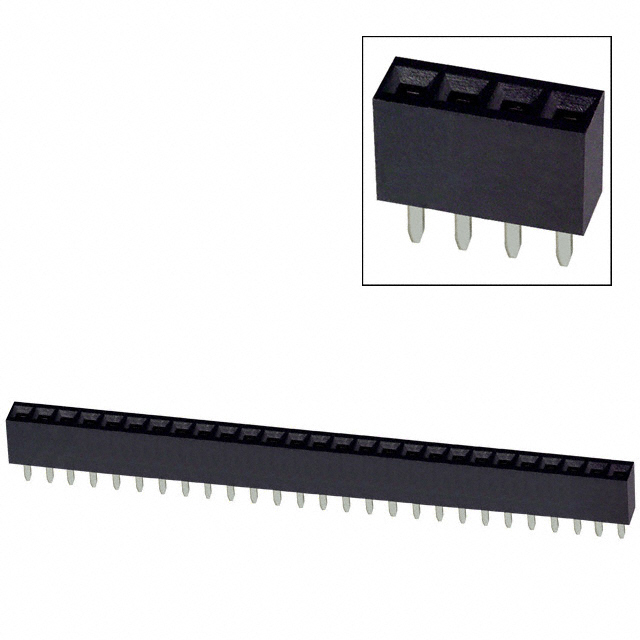

PPTC271LFBN-RC

Active

CONN HDR 27POS 0.1 TIN PCB

Active

CONN HDR 27POS 0.1 TIN PCB

Description

General part information

27 Position Header Connector 0.100" (2.54mm) Through Hole Tin

Parameters and characteristics for this part

Specification	PPTC271LFBN-RC

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 in
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	27
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Style	Board
Termination	Solder
Voltage Rating	250 V

Part	Contact Finish - Post	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Style	Fastening Type	Termination	Number of Positions Loaded	Insulation Height	Material Flammability Rating	Contact Finish - Mating	Mounting Type	Number of Positions	Insulation Color	Connector Type	Pitch - Mating	Contact Length - Post	Voltage Rating	Number of Rows	Insulation Material	Contact Shape	Contact Material
Sullins Connector Solutions PPTC271LFBN	Tin	Female Socket	-40 °C	105 °C	3 A	Board	Push-Pull	Solder	All	0.335 in	UL94 V-0	Tin	Through Hole	27	Black	Header	0.1 in	0.126 in	250 V	1	Polyester	Square	Phosphor Bronze
Sullins Connector Solutions PPTC271LFBN-RC	Tin	Female Socket	-40 °C	105 °C	3 A	Board	Push-Pull	Solder	All	0.335 in	UL94 V-0	Tin	Through Hole	27	Black	Header	0.1 in	0.126 in	250 V	1	Polyester	Square	Phosphor Bronze
