82-6152.11A4
ActiveVANDAL RESISTANT SWITCH, SPDT, NATURAL, 82 SERIES, MOMENTARY, GREEN, RED, SCREW
Deep-Dive with AI
Search across all available documentation for this part.
82-6152.11A4
ActiveVANDAL RESISTANT SWITCH, SPDT, NATURAL, 82 SERIES, MOMENTARY, GREEN, RED, SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82-6152.11A4 | 82-6152 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current | - | 7 mA |
| Current Rating (Amps) | 3 A | 3 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Illumination Type, Color | Green/Red, LED | Green/Red, LED, Yellow |
| Illumination Voltage (Nominal) | 24 VAC/DC | 6 - 24 VAC/DC |
| Ingress Protection | IP67, IP65 | IP67, IP65 |
| Lamp Color | - | Green |
| Lens Color | - | Colorless |
| Lens Size | - | 25 mm |
| Mechanical Life | 1000000 Cycles | 500000 - 1000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions | - | 0.88 in |
| Panel Cutout Dimensions | - | 22.3 mm |
| Panel Cutout Dimensions [diameter] | 22.3 mm | 22.3 mm |
| Panel Cutout Shape | - | Round |
| Ratings | - | DC, AC/DC |
| Switch Function | On-Mom | On-On, On-Mom |
| Termination Style | Screw Terminal | Screw Terminal, Solder Lug |
| Type | Illuminated, Standard | Illuminated, Standard, LED |
| Voltage | - | 24 V |
| Voltage Rating - AC | 240 V | 240 V |
| Voltage Rating - DC | 240 V | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
82-6152 Series
PUSH BUTTON SWITCH ROHS
| Part | Termination Style | Current Rating (Amps) | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Illumination Type, Color | Actuator Marking | Circuit | Actuator Type | Type | Voltage Rating - DC | Mounting Type | Illumination Voltage (Nominal) | Ingress Protection | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Mechanical Life | Switch Function | Ratings | Lens Color | Voltage | Lens Size [diameter] | Current | Panel Cutout Shape | Panel Cutout Dimensions | Panel Cutout Dimensions | Lamp Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 82-6152.1142 | ||||||||||||||||||||||||||||
EAO 82-6152.22A4 | Screw Terminal | 3 A | Silver | 22.3 mm | Green/Red, LED | No Marking | SPDT | Button, Flush, Round | Illuminated, Standard | 240 V | Panel Mount, Front | 24 VAC/DC | IP65, IP67 | 240 V | 70 °C | -30 ░C | 50000 Cycles | 500000 Cycles | On-On | |||||||||
EAO 82-6152.11A4 | Screw Terminal | 3 A | Silver | 22.3 mm | Green/Red, LED | No Marking | SPDT | Button, Flush, Round | Illuminated, Standard | 240 V | Panel Mount, Front | 24 VAC/DC | IP65, IP67 | 240 V | 70 °C | -30 ░C | 50000 Cycles | 1000000 Cycles | On-Mom | |||||||||
EAO 82-6152.02A4 | Solder Lug | LED | IP65, IP67 | DC | Colorless | 24 V | 25 mm | 7 mA | Round | 0.88 in | 22.3 mm | |||||||||||||||||
EAO 82-6152.1144 | Screw Terminal | 3 A | Silver | 22.3 mm | LED, Yellow | No Marking | SPDT | Button, Flush, Round | Illuminated, Standard | 240 V | Panel Mount, Front | 24 VAC/DC | IP65, IP67 | 240 V | 70 °C | -30 ░C | 50000 Cycles | 1000000 Cycles | On-Mom | |||||||||
EAO 82-6152.0134 | Solder Lug | LED | IP65, IP67 | AC/DC | Colorless | 24 V | 25 mm | 7 mA | Round | 0.88 in | 22.3 mm | Green | ||||||||||||||||
EAO 82-6152.02A4 | ||||||||||||||||||||||||||||
EAO 82-6152.1144 | ||||||||||||||||||||||||||||
EAO 82-6152.11A4 | ||||||||||||||||||||||||||||
EAO 82-6152.1142 | Screw Terminal | 3 A | Silver | 22.3 mm | LED, Yellow | No Marking | SPDT | Button, Flush, Round | Illuminated, Standard | 240 V | Panel Mount, Front | 6 VAC/DC | IP65, IP67 | 240 V | 70 °C | -30 ░C | 50000 Cycles | 1000000 Cycles | On-Mom |
Description
General part information
82-6152 Series

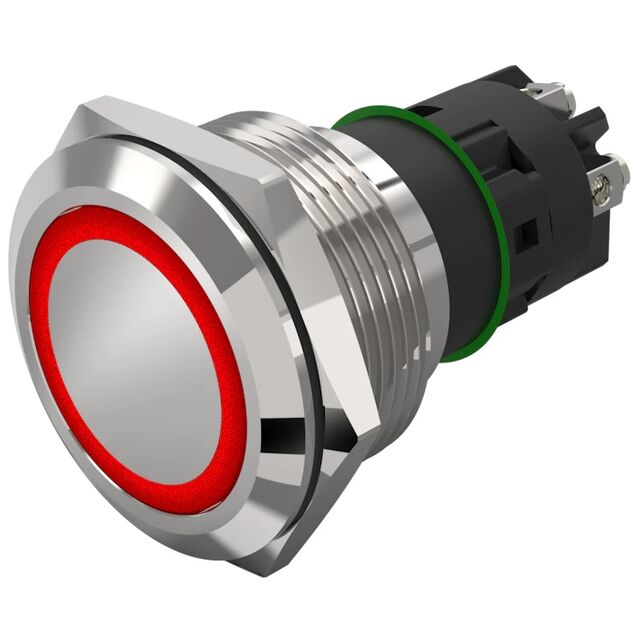

The 82-6152.11A4 from EAO is an 82 series 22mm vandal resistant pushbutton switch. With series 82, EAO offers the ideal pushbutton for vandal resistant, stylish HMI controls used in harsh industrial environments, public areas and building management. With its robust housing, this innovatively designed switch is protected to IK10 impact resistance and IP67 sealing requirements which makes them ideal for use in exposed public buildings and areas. It has contact resistance of ≤ 50mohm according to IEC 60512-2 and isolation resistance of >1000Mohm according to IEC 60512-3. This switch features opaque lens optics, stainless steel lens material, flat lens profile, illuminative lens and stainless steel lens colour. Typical application includes ticketing and vending machines, industrial (machinery and factory equipment), lifting and moving (elevators and people movers), building management (access control and security systems), audio and video equipment, medical equipment.
