TB2-2D-DC-4

Active

Switch Components

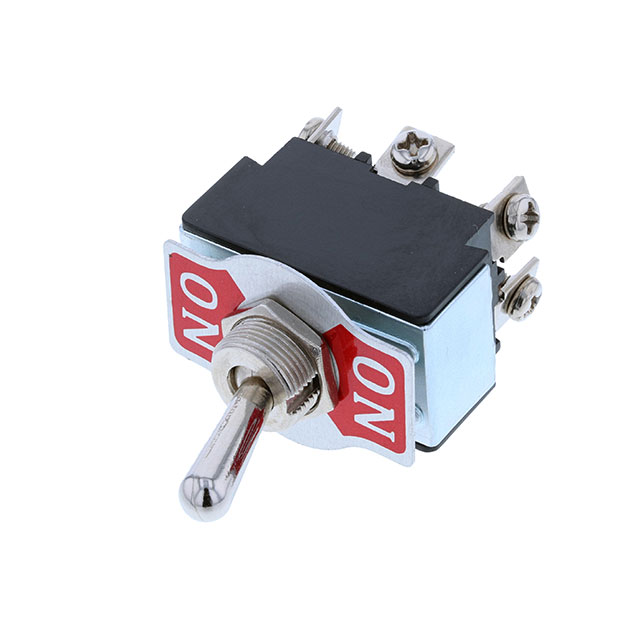

24V DPDT STRAIGHT TOGGLE SWITCHES ROHS

Search across all available documentation for this part.

Active

Switch Components

24V DPDT STRAIGHT TOGGLE SWITCHES ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TB2-2D-DC-4	TB2-2D Series

Actuator Length [x]	17.7 mm	17.7 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	M12	M12
Bushing Thread	0.75	0.75
Circuit	DPDT	DPDT
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-On	On-On
Termination Style	Screw Terminal	Screw Terminal, Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

24V DPDT STRAIGHT TOGGLE SWITCHES ROHS

Part	Switch Function	Actuator Length [x]	Bushing Thread	Bushing Thread	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Current Rating (Amps)	Actuator Type	Electrical Life	Circuit	Termination Style	Illumination
Switch Components TB2-2D-DC-4	On-On	17.7 mm	M12	0.75	12.2 mm	12 V	20 A	Standard Round	6000 Cycles	DPDT	Screw Terminal	Non-Illuminated
Switch Components TB2-2D-DC-1	On-On	17.7 mm	M12	0.75	12.2 mm	12 V	20 A	Standard Round	6000 Cycles	DPDT	Quick Connect - 0.250" (6.3mm)	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
