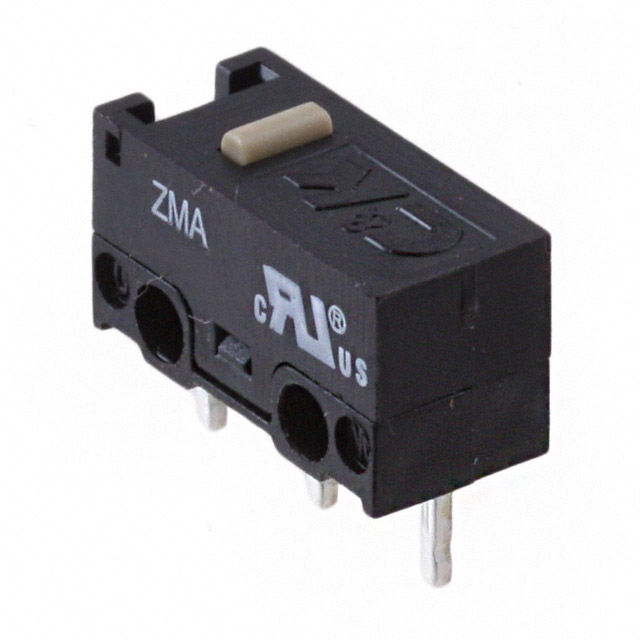

ZMA00A150P00PC

Active

LITTELFUSE

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet snap +1

ZMA00A150P00PC

Active

LITTELFUSE

SWITCH SNAP ACT SPDT 100MA 125V

Deep-Dive with AI

DocumentsDatasheet snap +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZMA00A150P00PC	ZMA00A150 Series

Actuator Type	Round (Pin Plunger)	Lever, Straight, Simulated Roller, Lever, Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	100 mA	100 mA
Electrical Life	300000 Cycles	300000 Cycles
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Operating Force	150 gf	49 - 150 gf
Operating Position	0.272 in	0.272 - 0.312 in
Operating Position	6.9 mm	6.9 - 7.9 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.2 mm	0.2 - 1.25 mm
Overtravel	0.008 in	0.008 - 0.049 "
Pretravel	0.024 in	0.024 - 0.12 in
Pretravel	0.6 mm	0.6 - 3 mm
Release Force	35 gf	8 - 35 gf
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	60 VDC	60 VDC

ZMA00A150 Series

Mini Size Snap-acting Switches

Part	Operating Position	Operating Position	Switch Function	Termination Style	Actuator Type	Electrical Life	Mechanical Life	Overtravel	Overtravel	Release Force	Pretravel	Pretravel	Voltage Rating - AC	Mounting Type	Voltage Rating - DC	Operating Force	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Circuit
LITTELFUSE ZMA00A150L04PC	0.312 in	7.9 mm	On-Mom	PC Pin	Lever, Straight	300000 Cycles	1000000 Cycles	0.6 mm	0.025 "	8 gf	0.12 in	3 mm	125 V	Through Hole	60 VDC	50 gf	100 mA	85 °C	-40 °C	SPDT
LITTELFUSE ZMA00A150L04LC	0.312 in	7.9 mm	On-Mom	PC Pin	Lever, Straight	300000 Cycles	1000000 Cycles	0.6 mm	0.025 "	8 gf	0.12 in	3 mm	125 V	Through Hole, Right Angle	60 VDC	50 gf	100 mA	85 °C	-40 °C	SPDT
LITTELFUSE ZMA00A150S06PC			On-Mom	PC Pin	Lever, Simulated Roller	300000 Cycles	1000000 Cycles	1.25 mm	0.049 in	11 gf	0.055 in	1.4 mm	125 V	Through Hole	60 VDC	49 gf	100 mA	85 °C	-40 °C	SPDT
LITTELFUSE ZMA00A150S06RC			On-Mom	PC Pin	Lever, Simulated Roller	300000 Cycles	1000000 Cycles	1.25 mm	0.049 in	11 gf	0.055 in	1.4 mm	125 V	Through Hole, Right Angle	60 VDC	49 gf	100 mA	85 °C	-40 °C	SPDT
LITTELFUSE ZMA00A150P00PC	0.272 in	6.9 mm	On-Mom	PC Pin	Round (Pin Plunger)	300000 Cycles	1000000 Cycles	0.2 mm	0.008 in	35 gf	0.024 in	0.6 mm	125 V	Through Hole	60 VDC	150 gf	100 mA	85 °C	-40 °C	SPDT
LITTELFUSE ZMA00A150P00LC	0.272 in	6.9 mm	On-Mom	PC Pin	Round (Pin Plunger)	300000 Cycles	1000000 Cycles	0.2 mm	0.008 in	35 gf	0.024 in	0.6 mm	125 V	Through Hole, Right Angle	60 VDC	150 gf	100 mA	85 °C	-40 °C	SPDT
LITTELFUSE ZMA00A150P00RC	0.272 in	6.9 mm	On-Mom	PC Pin	Round (Pin Plunger)	300000 Cycles	1000000 Cycles	0.2 mm	0.008 in	35 gf	0.024 in	0.6 mm	125 V	Through Hole, Right Angle	60 VDC	150 gf	100 mA	85 °C	-40 °C	SPDT
LITTELFUSE ZMA00A150S06LC			On-Mom	PC Pin	Lever, Simulated Roller	300000 Cycles	1000000 Cycles	1.25 mm	0.049 in	11 gf	0.055 in	1.4 mm	125 V	Through Hole, Right Angle	60 VDC	49 gf	100 mA	85 °C	-40 °C	SPDT
LITTELFUSE ZMA00A150L04RC	0.312 in	7.9 mm	On-Mom	PC Pin	Lever, Straight	300000 Cycles	1000000 Cycles	0.6 mm	0.025 "	8 gf	0.12 in	3 mm	125 V	Through Hole, Right Angle	60 VDC	50 gf	100 mA	85 °C	-40 °C	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.61
		10	$ 0.51
		25	$ 0.47
		40	$ 0.45
		80	$ 0.43
		230	$ 0.39
		440	$ 0.37

Description

General part information

ZMA00A150 Series

C&K’s ZMA series mini size snap-acting switches are often found used in PCB detection switches, communication devices and various types of testing equipment. Featuring a compact size (which is ideal when space is limited) and a reliable snap-acting mechanism, the ZMA series give applications a long electrical and mechanical life, ensuing they stand up to repeated use.
