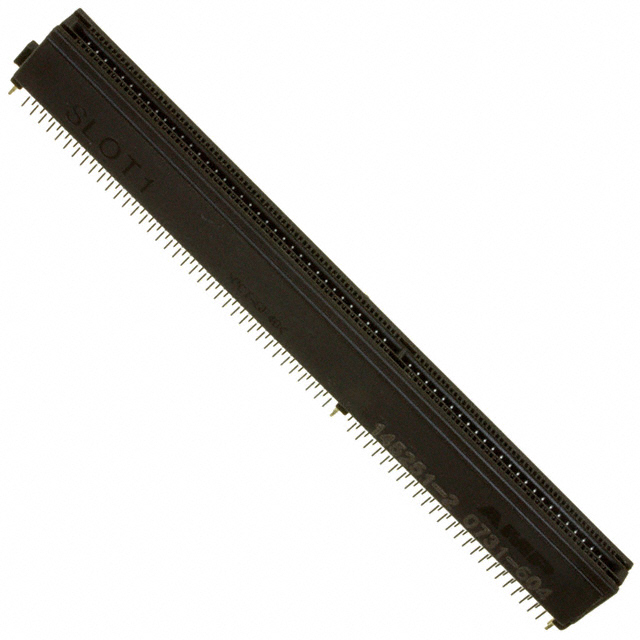

145251-2

Obsolete

TE Connectivity Raychem Cable Protection

CONN CPU SLOT 1 FEMALE 242POS

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN CPU SLOT 1 FEMALE 242POS

Technical Specifications

Parameters and characteristics for this part

Specification	145251-2

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	CPU - Slot 1
Color	Brown
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	73
Number of Positions/Bay/Row [custom]	48
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder, Staggered

Part	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Material - Insulation	Pitch [x]	Pitch [x]	Contact Finish	Card Thickness	Card Thickness	Card Type	Number of Rows	Read Out	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Color	Termination
TE Connectivity Raychem Cable Protection 145251-1	Female	15 µin	0.38 µm	Through Hole	Phosphor Bronze	Thermoplastic	2.54 mm	0.1 in	Gold	0.062 in	1.57 mm	CPU - Slot 1	2	Dual	73	48	Brown	Solder Staggered
TE Connectivity Raychem Cable Protection 145251-2	Female	15 µin	0.38 µm	Through Hole	Phosphor Bronze	Thermoplastic	2.54 mm	0.1 in	Gold	0.062 in	1.57 mm	CPU - Slot 1	2	Dual	73	48	Brown	Solder Staggered

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

242 Position Female Connector CPU - Slot 1 Gold 0.100" (2.54mm) Brown
