AXK720327G

Obsolete

Panasonic Electric Works

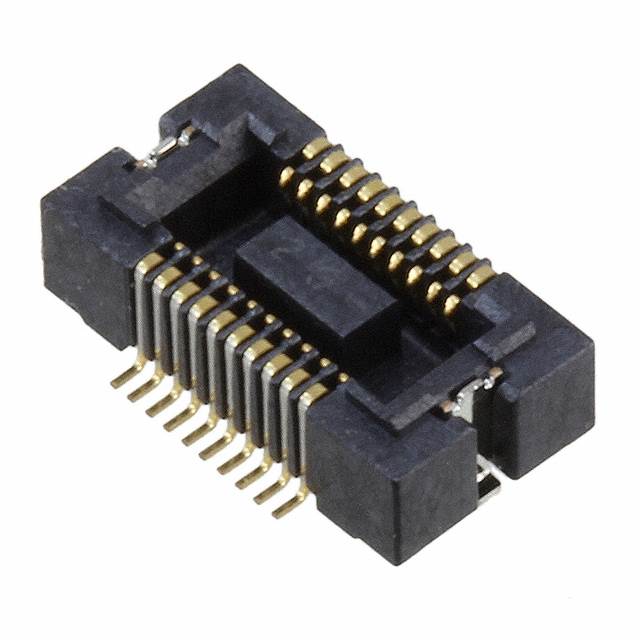

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK720327G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	2.41 mm
Height Above Board [z]	0.095 in
Mated Stacking Heights [z]	3 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Rows	Number of Positions	Features	Connector Type	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Panasonic Electric Works AXK720117G	2	20	Board Guide Solder Retention	Center Strip Outer Edge Contacts Socket	Surface Mount	Gold	0.016 in	0.4 mm	1.5 mm	0.059 in	1.5 mm
Panasonic Electric Works AXK720327G	2	20	Solder Retention	Center Strip Outer Edge Contacts Socket	Surface Mount	Gold	0.016 in	0.4 mm				2.41 mm	0.095 in	2.5 mm 3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
