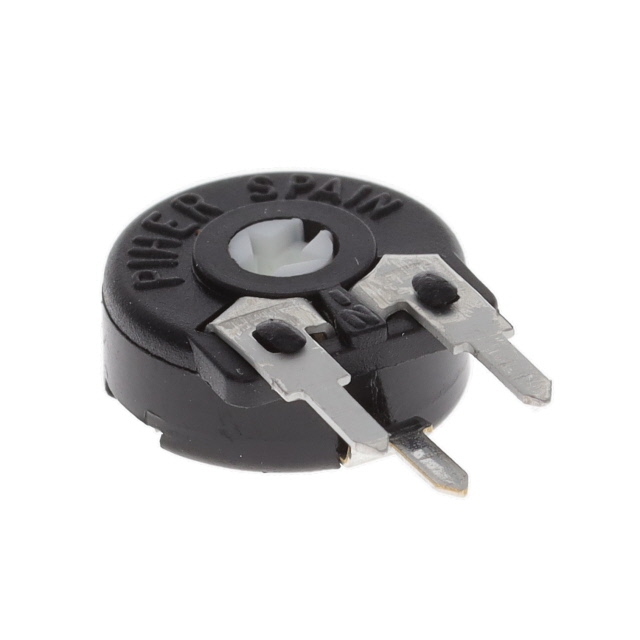

PT10LH01-505A3030-S

Active

Amphenol Piher Sensing Systems

TRIMMER 5M OHM 0.15W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PT10LH01-505A3030-S

Active

Amphenol Piher Sensing Systems

TRIMMER 5M OHM 0.15W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.84
		10	$ 0.68
		25	$ 0.62
		50	$ 0.58
		100	$ 0.54
		250	$ 0.50
		500	$ 0.46
		1000	$ 0.43

Description

General part information

PT10LH01 Series

5 MOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PT10LH01-505A3030-S	PT10LH01 Series

Adjustment Type	Side Adjustment	Side Adjustment
Mounting Type	Through Hole	Through Hole
Number of Turns	1	1
Power (Watts)	150 mW	150 mW
Resistance	5 MOhms	1 - 10000 kOhms
Resistive Material	Carbon	Carbon
Size / Dimension	Round	Round
Size / Dimension [diameter]	0.406 in	0.406 in
Size / Dimension [diameter]	10.3 mm	10.3 mm
Temperature Coefficient	300 ppm/°C	300 ppm/°C
Termination Style	PC Pins	PC Pins
Tolerance	30 %	20 - 30 %

PT10LH01 Series

TRIMMER 47KOHM 0.15W PC PIN SIDE

Part	Tolerance	Power (Watts)	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension	Resistance	Resistive Material	Adjustment Type	Number of Turns	Termination Style	Temperature Coefficient
Amphenol Piher Sensing Systems PT10LH01-473A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	47 kOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-504A2020-PM-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round		Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-202A2020-PM-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	2 kOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-255A3030-S	30 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	2.5 MOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-101A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	100 Ohms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-503A2020-PM-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	50 kOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-201A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	200 Ohms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-505A3030-S	30 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	5 MOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-501A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	500 Ohms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
Amphenol Piher Sensing Systems PT10LH01-104A2020-S	20 %	150 mW	Through Hole	0.406 in	10.3 mm	Round	100 kOhms	Carbon	Side Adjustment	1	PC Pins	300 ppm/°C
