HF759/40SF

Active

80001249434 HF759/40SF=40/CAB/GRAY/RJFL/HF/28AWG/STR/.050/275FT ROLL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide Datasheet

HF759/40SF

Active

80001249434 HF759/40SF=40/CAB/GRAY/RJFL/HF/28AWG/STR/.050/275FT ROLL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1925	$ 3.19
Newark	Spool of 275	5	$ 1067.40
		10	$ 1026.87
		25	$ 1006.60

Description

General part information

HF759 Series

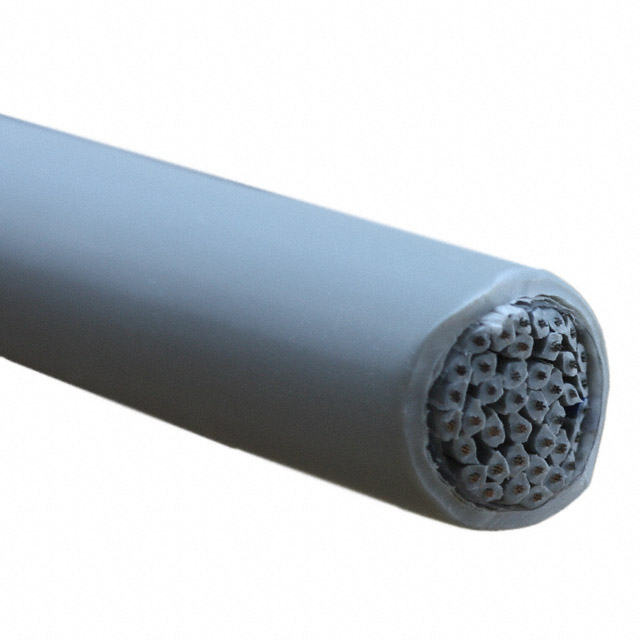

Flat Ribbon Cable Gray 40 Conductors 0.050" (1.27mm) Flat Cable, Round Jacket 5.0' (1.52m)

Documents

Technical documentation and resources

Cables & Accessories Selection Guide

Datasheet

Specification	HF759/40SF	HF759 Series

Cable Type	Round Jacket, Flat Cable	Round Jacket, Flat Cable
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	Zippable, Splice Free	Zippable, Splice Free
First Conductor Mark	Blue	Blue
Insulation Resistance	10 GOhm	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Gray	Gray
Length	83.82 m	7.62 - 83.82 m
Length	275 ft	25 - 275 ft
Length	-	Enter Number of Feet in Order Quantity
Length [x]	3.05 m	3.05 - 30.48 m
Length [x]	10 ft	10 - 100 ft
Number of Conductors	40	10 - 60
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-10 °C	-10 °C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 22170	UL Style 22170
Ribbon Width	1.95 in	0.45 - 2.45 in
Ribbon Width	49.53 mm	11.43 - 74.93 mm
Ribbon Width	-	0.7 - 2.95 "
Ribbon Width	-	17.78 - 44.45 mm
Shielding	Unshielded	Unshielded
Spool Size	-	83.82 m
Spool Size	-	275 ft
Voltage	150 V	150 V
Wire Gauge	28 AWG	28 AWG

Part

First Conductor Mark

Pitch [x]

Operating Temperature [Min]

Operating Temperature [Max]

Shielding

Conductor Strand [custom]

Wire Gauge

Number of Conductors

Jacket Color

Cable Type

Features

Ratings

Conductor Material

Jacket (Insulation) Material

Ribbon Width

Insulation Resistance

Voltage

Length

Length [x]

Ribbon Width [x]

Length

Spool Size

HF759/37

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

1.8 in

45.72 mm

10 GOhm

150 V

83.82 m

275 ft

HF759/20

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

0.95 "

24.13 mm

10 GOhm

150 V

83.82 m

275 ft

HF759/40

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

1.95 in

49.53 mm

10 GOhm

150 V

83.82 m

275 ft

HF759/20SF

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Splice Free, Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

0.95 "

24.13 mm

10 GOhm

150 V

7.62 m, 15.24 m

25 ft, 50 ft

3.05 m, 30.48 m

10 ft, 100 ft

HF759/10SF

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Splice Free, Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

0.45 in

11.43 mm

10 GOhm

150 V

83.82 m

275 ft

HF759/40SF

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Splice Free, Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

1.95 in

49.53 mm

10 GOhm

150 V

83.82 m

275 ft

3.05 m

10 ft

HF759/26

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

10 GOhm

150 V

83.82 m

275 ft

1.25 "

31.75 mm

HF759/60

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

74.93 mm

10 GOhm

150 V

83.82 m

275 ft

2.95 in

HF759/10

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

0.45 in

11.43 mm

10 GOhm

150 V

Enter Number of Feet in Order Quantity

83.82 m

275 ft

HF759/15SF

Blue

0.05 in

1.27 mm

-10 °C

75 ░C

Unshielded

36 AWG

28 AWG

Gray

Flat Cable, Round Jacket

Splice Free, Zippable

UL Style 22170

Copper, Tinned

Polyolefin (PO)

10 GOhm

150 V

83.82 m

275 ft

0.7 in

17.78 mm

Part	First Conductor Mark	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Number of Conductors	Jacket Color	Cable Type	Features	Ratings	Conductor Material	Jacket (Insulation) Material	Ribbon Width	Ribbon Width	Insulation Resistance	Voltage	Length	Length	Length [x]	Length [x]	Ribbon Width [x]	Ribbon Width [x]	Length	Spool Size	Spool Size
3M HF759/37	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	37	Gray	Flat Cable, Round Jacket	Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)	1.8 in	45.72 mm	10 GOhm	150 V	83.82 m	275 ft
3M HF759/20	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	20	Gray	Flat Cable, Round Jacket	Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)	0.95 "	24.13 mm	10 GOhm	150 V	83.82 m	275 ft
3M HF759/40	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	40	Gray	Flat Cable, Round Jacket	Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)	1.95 in	49.53 mm	10 GOhm	150 V	83.82 m	275 ft
3M HF759/20SF	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	20	Gray	Flat Cable, Round Jacket	Splice Free, Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)	0.95 "	24.13 mm	10 GOhm	150 V	7.62 m, 15.24 m	25 ft, 50 ft	3.05 m, 30.48 m	10 ft, 100 ft
3M HF759/10SF	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	10	Gray	Flat Cable, Round Jacket	Splice Free, Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)	0.45 in	11.43 mm	10 GOhm	150 V	83.82 m	275 ft
3M HF759/40SF	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	40	Gray	Flat Cable, Round Jacket	Splice Free, Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)	1.95 in	49.53 mm	10 GOhm	150 V	83.82 m	275 ft	3.05 m	10 ft
3M HF759/26	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	26	Gray	Flat Cable, Round Jacket	Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)			10 GOhm	150 V	83.82 m	275 ft			1.25 "	31.75 mm
3M HF759/60	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	60	Gray	Flat Cable, Round Jacket	Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)		74.93 mm	10 GOhm	150 V	83.82 m	275 ft			2.95 in
3M HF759/10	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	10	Gray	Flat Cable, Round Jacket	Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)	0.45 in	11.43 mm	10 GOhm	150 V							Enter Number of Feet in Order Quantity	83.82 m	275 ft
3M HF759/15SF	Blue	0.05 in	1.27 mm	-10 °C	75 ░C	Unshielded	7	36 AWG	28 AWG	15	Gray	Flat Cable, Round Jacket	Splice Free, Zippable	UL Style 22170	Copper, Tinned	Polyolefin (PO)			10 GOhm	150 V	83.82 m	275 ft			0.7 in	17.78 mm
