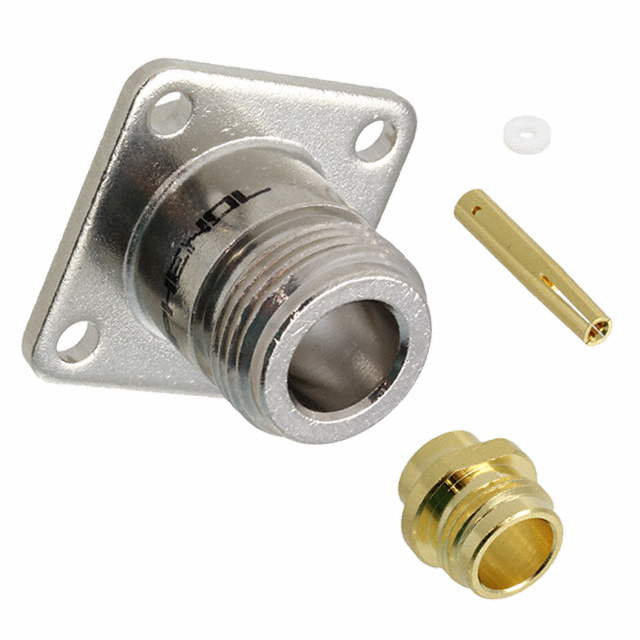

82-6163

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	82-6163

Body Finish	Nickel
Body Material	Brass
Cable Group	0.25 in
Cable Group	RG-401
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Insulator, 1 Contact
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Style	Number of Ports	Mating Cycles	Housing Color	Center Contact Material	Includes	Insertion Loss	Body Material	Mounting Feature	Body Finish	Cable Group	Cable Group	Dielectric Material	Shield Termination	Voltage Rating	Connector Type	Impedance	Center Contact Plating
Amphenol RF 82-6163	11 GHz	-65 ░C	165 °C	Solder	N Type	1	500	Silver	Phosphor Bronze	1 Connector 1 Contact 1 Insulator 1 Nut	0.15 dB	Brass	Flange	Nickel	0.25 in	RG-401	Polytetrafluoroethylene (PTFE)	Solder	1500 V	Female Socket Jack	50 Ohms	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
