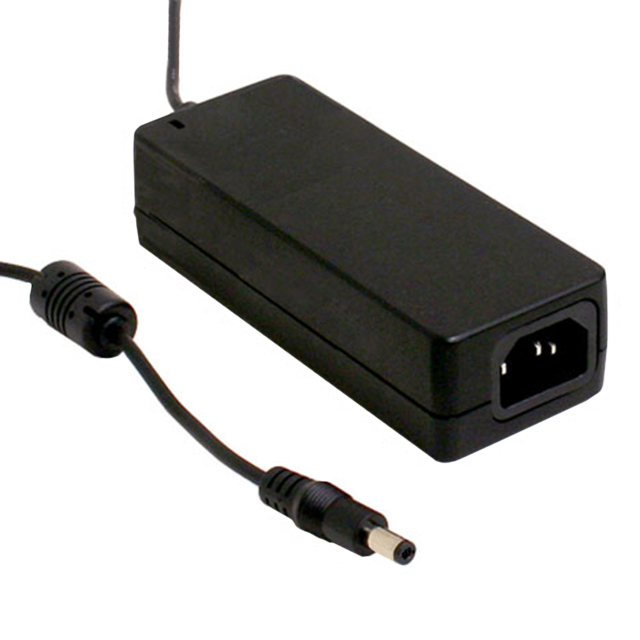

Specification	GSM40A09-P1J

Applications	Medical
Approval Agency	cURus, CB, TUV, CE
Cord Length	39.4 in
Current - Output (Max)	4.45 A
Efficiency	Level V
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	100 mW
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	11 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension Height	1.24 in
Size / Dimension Length	4.92 in
Size / Dimension Width	1.97 in
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	80 V
Voltage - Output	9 V

GSM40A09 Series

Part	Approval Agency	Voltage - Output	Current - Output (Max)	Cord Length	Form	No Load Power Consumption (Max)	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	Applications	Input Type	Efficiency	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Polarization	Region Utilized	Input Connector	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length
MEAN WELL USA Inc. GSM40A09-P1J	CB CE cURus TUV	9 V	4.45 A	39.4 in	Desktop (Class I)	100 mW	2.1 mm	Barrel Plug	11 mm	5.5 mm	Medical	Cord (Sold Separately)	Level V	70 °C	-30 °C	40 W	Positive Center	International	IEC 320-C14	80 V	264 V	1.97 in	1.24 in	4.92 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
