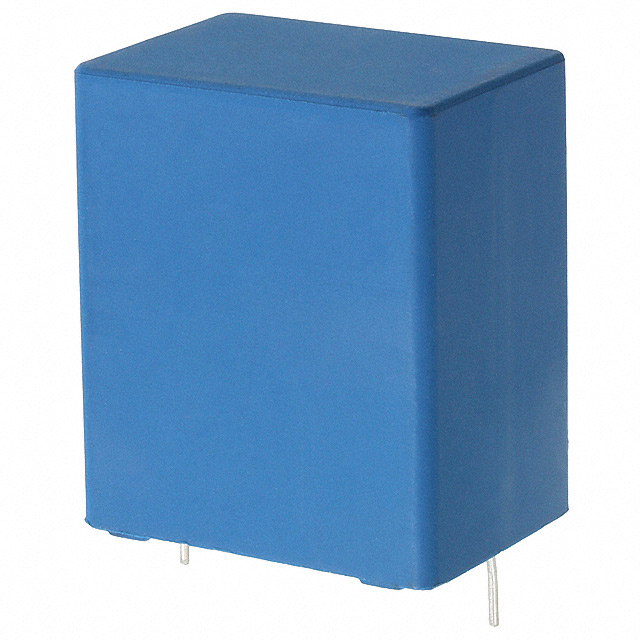

B32774D0705K000

Active

EPCOS - TDK Electronics

CAP FILM 7UF 10% 1.1KVDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

B32774D0705K000

Active

EPCOS - TDK Electronics

CAP FILM 7UF 10% 1.1KVDC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.50
		10	$ 4.73
		50	$ 4.29
		196	$ 3.54
		588	$ 3.08
		1176	$ 3.06

Description

General part information

B32774D Series

7 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B32774D0705K000	B32774D Series

Applications	DC Link, DC Filtering	DC Link, DC Filtering
Capacitance	7 µF	1.5 - 22 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	8.1 mOhms	5.4 - 31.3 mOhms
Features	Long Life	Long Life
Height - Seated (Max)	-	21.5 mm
Height - Seated (Max)	-	0.846 in
Height - Seated (Max) [Max] [z]	36.5 mm	21 - 36.5 mm
Height - Seated (Max) [Max] [z]	1.437 in	0.827 - 1.437 in
Lead Spacing	27.5 mm	27.5 mm
Lead Spacing	1.083 in	1.083 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial	Radial
Size / Dimension [x]	1.24 in	1.24 in
Size / Dimension [x]	31.5 mm	31.5 mm
Size / Dimension [y]	22 mm	12.5 - 22 mm
Size / Dimension [y]	0.866 in	0.492 - 0.866 in
Termination	PC Pins	PC Pins
Tolerance	10 %	5 - 10 %
Voltage Rating - DC	1100 V	450 - 1300 V
Voltage Rating - DC	1.1 kV	1.1 - 1.3 kV

B32774D Series

CAP FILM 12UF 5% 800VDC RADIAL

Part	Dielectric Material	Voltage Rating - DC	Mounting Type	Package / Case	Tolerance	Lead Spacing	Lead Spacing	Applications	Features	Capacitance	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
EPCOS - TDK Electronics B32774D8126J000	Metallized, Polypropylene (PP)	800 V	Through Hole	Radial	5 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	12 µF	PC Pins	36.5 mm	1.437 in	6.8 mOhms	-40 °C	105 ░C	1.24 in	22 mm	0.866 in	31.5 mm
EPCOS - TDK Electronics B32774D0505J000	Metallized, Polypropylene (PP)	1100 V	Through Hole	Radial	5 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	5 µF	PC Pins	30 mm	1.181 "	10.9 mOhms	-40 °C	105 ░C					1.1 kV
EPCOS - TDK Electronics B32774D1305K000	Metallized, Polypropylene (PP)	1300 V	Through Hole	Radial	10 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	3 µF	PC Pins	27.5 mm	1.083 in	16 mOhm	-40 °C	105 ░C	1.24 in	18 mm	0.709 "	31.5 mm	1.3 kV
EPCOS - TDK Electronics B32774D8305K189	Metallized, Polypropylene (PP)	800 V	Through Hole	Radial	10 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	3 µF	PC Pins	21 mm	0.827 "	24.8 mOhms	-40 °C	105 ░C
EPCOS - TDK Electronics B32774D1505K000	Metallized, Polypropylene (PP)	1300 V	Through Hole	Radial	10 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	5 µF	PC Pins	36.5 mm	1.437 in	9.8 mOhms	-40 °C	105 ░C	1.24 in	22 mm	0.866 in	31.5 mm	1.3 kV
EPCOS - TDK Electronics B32774D4226K000	Metallized, Polypropylene (PP)	450 V	Through Hole	Radial	10 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	22 µF	PC Pins	36.5 mm	1.437 in	5.4 mOhms	-40 °C	105 ░C	1.24 in	22 mm	0.866 in	31.5 mm
EPCOS - TDK Electronics B32774D1305J000	Metallized, Polypropylene (PP)	1300 V	Through Hole	Radial	5 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	3 µF	PC Pins	27.5 mm	1.083 in	16 mOhm	-40 °C	105 ░C	1.24 in	18 mm	0.709 "	31.5 mm	1.3 kV
EPCOS - TDK Electronics B32774D8126K000	Metallized, Polypropylene (PP)	800 V	Through Hole	Radial	10 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	12 µF	PC Pins	36.5 mm	1.437 in	6.8 mOhms	-40 °C	105 ░C	1.24 in	22 mm	0.866 in	31.5 mm
EPCOS - TDK Electronics B32774D1155K000	Metallized, Polypropylene (PP)	1300 V	Through Hole	Radial	10 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	1.5 µF	PC Pins			31.3 mOhms	-40 °C	105 ░C	1.24 in	12.5 mm	0.492 "	31.5 mm	1.3 kV	21.5 mm	0.846 in
EPCOS - TDK Electronics B32774D0705K000	Metallized, Polypropylene (PP)	1100 V	Through Hole	Radial	10 %	27.5 mm	1.083 in	DC Filtering, DC Link	Long Life	7 µF	PC Pins	36.5 mm	1.437 in	8.1 mOhms	-40 °C	105 ░C	1.24 in	22 mm	0.866 in	31.5 mm	1.1 kV
