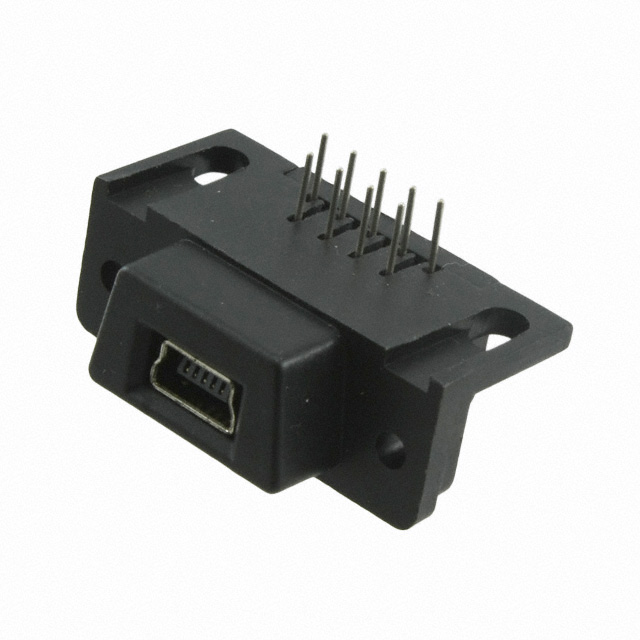

DB9-USB-D3-M

Active

FTDI, Future Technology Devices International Ltd

MOD USB UART EMBDED 3.3V MALE

Search across all available documentation for this part.

Active

FTDI, Future Technology Devices International Ltd

MOD USB UART EMBDED 3.3V MALE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DB9-USB-D3-M	DB9-USB Series

Convert From (Adapter End)	USB - Mini B 2.0 Female	USB - Mini B 2.0 Female
Convert To (Adapter End)	D-Sub 09 Pos (DB9) Male	D-Sub 09 Pos (DB9) Male, D-Sub 09 Pos (DB9) Female
Features	D-Shaped Housing	D-Shaped Housing
Interface	UART	UART
Type	USB to Serial	USB to Serial
Utilized IC / Part	FT232R	FT232R

MOD USB UART EMBDED 3.3V MALE

Part	Interface	Convert From (Adapter End)	Type	Features	Convert To (Adapter End)	Utilized IC / Part
FTDI, Future Technology Devices International Ltd DB9-USB-D3-M	UART	USB - Mini B 2.0 Female	USB to Serial	D-Shaped Housing	D-Sub 09 Pos (DB9) Male	FT232R
FTDI, Future Technology Devices International Ltd DB9-USB-M		USB - Mini B 2.0 Female	USB to Serial	D-Shaped Housing	D-Sub 09 Pos (DB9) Male	FT232R
FTDI, Future Technology Devices International Ltd DB9-USB-D5-M	UART	USB - Mini B 2.0 Female	USB to Serial	D-Shaped Housing	D-Sub 09 Pos (DB9) Male	FT232R
FTDI, Future Technology Devices International Ltd DB9-USB-F		USB - Mini B 2.0 Female	USB to Serial	D-Shaped Housing	D-Sub 09 Pos (DB9) Female	FT232R
FTDI, Future Technology Devices International Ltd DB9-USB-D5-F	UART	USB - Mini B 2.0 Female	USB to Serial	D-Shaped Housing	D-Sub 09 Pos (DB9) Female	FT232R
FTDI, Future Technology Devices International Ltd DB9-USB-D3-F	UART	USB - Mini B 2.0 Female	USB to Serial	D-Shaped Housing	D-Sub 09 Pos (DB9) Female	FT232R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MOD USB UART EMBDED 3.3V MALE
