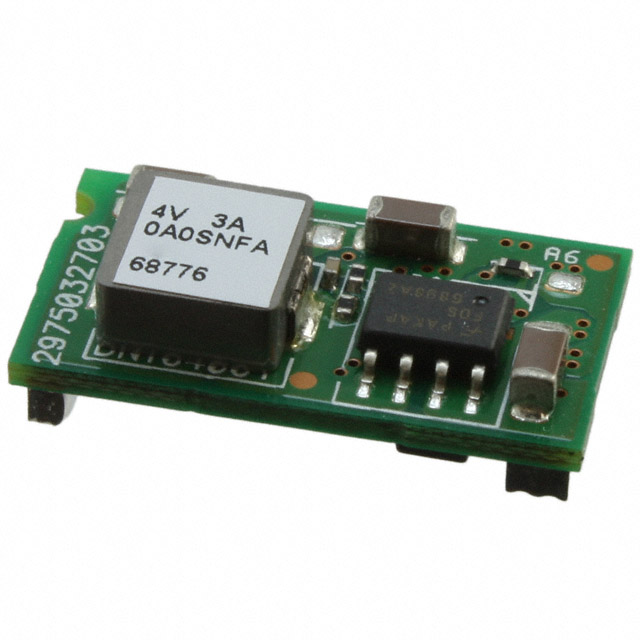

DNT04S0A0S03NFA

Obsolete

Delta Electronics

DC DC CONVERTER 0.75-3.63V 10W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER 0.75-3.63V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Package / Case	Applications	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Power (Watts)	Mounting Type	Current - Output (Max) [Max]	Features	Control Features
Delta Electronics DNT04S0A0S03NFA	3.63 V	0.75 V	85 °C	-40 °C	2.4 V	5-SMD Module	ITE (Commercial)	Non-Isolated PoL Module	0.27 "	0.8 "	20.3 mm	11.4 mm	0.45 in	6.9 mm	93 %	5.5 V	1	10 W	Surface Mount	3 A	OCP Remote On/Off UVLO	Active Low Enable
Delta Electronics DNT04S0A0R03NFA	3.63 V	0.75 V	85 °C	-40 °C	2.4 V	5-SIP Module	ITE (Commercial)	Non-Isolated PoL Module	0.4 "	0.9 "	22.9 mm	6.3 mm	0.25 in	10.2 mm	94 %	5.5 V	1	10 W	Through Hole	3 A	OCP Remote On/Off UVLO	Active Low Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.63V 3A 2.4V - 5.5V Input
