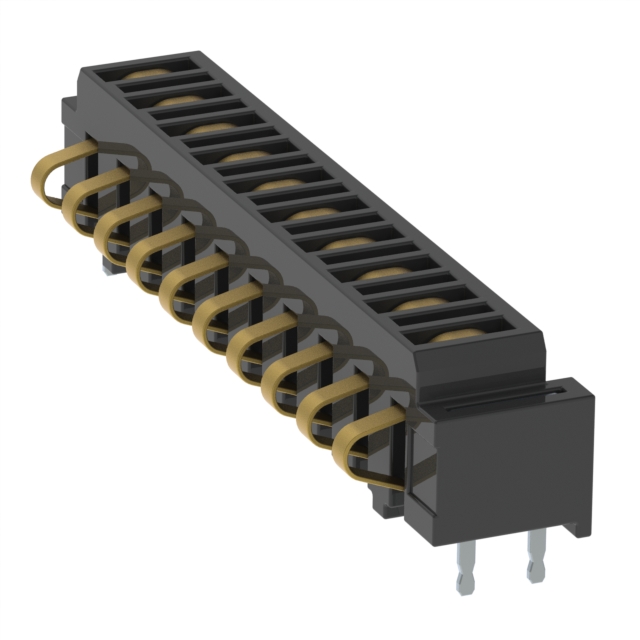

SIR1-10-L-S

Active

Samtec Inc.

CONN ONE PIECE INTERFACE M 10 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN ONE PIECE INTERFACE M 10 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	SIR1-10-L-S

Connector Type	Compression Contact, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Number of Contacts	10
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Number of Rows	Number of Contacts	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Material	Pitch [x]	Pitch [x]	Mounting Type	Connector Type
Samtec Inc. SIR1-10-L-S	1	10	Gold	10 Áin	0.25 Ám	Phosphor Bronze	2.54 mm	0.1 in	Surface Mount Right Angle	Compression Contact Non-Gendered

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Spring Compression Contact, Non-Gendered Connector Surface Mount, Right Angle
