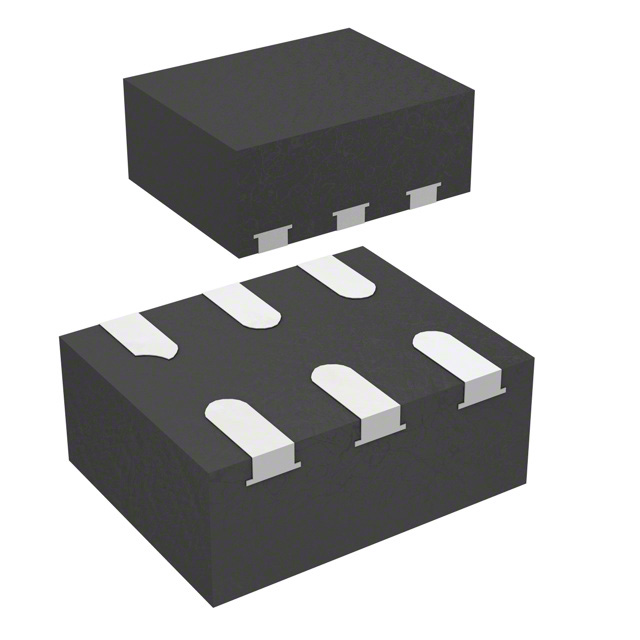

DF6D5M4N,LF
ActiveToshiba Semiconductor and Storage
TVS DIODE 3.6VWM 15VC 6DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF6D5M4N,LF
ActiveToshiba Semiconductor and Storage
TVS DIODE 3.6VWM 15VC 6DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF6D5M4N,LF |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels | 2 |
| Capacitance @ Frequency | 0.2 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | 6-UFDFN |
| Power - Peak Pulse | 30 W |
| Power Line Protection | False |
| Supplier Device Package | 6-DFN (1.25x1) |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 4 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 15 V |
| Voltage - Reverse Standoff (Typ) | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 9000 | $ 0.09 | |||
| 15000 | $ 0.09 | |||
| 21000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
Description
General part information
DF6D5M4 Series
15V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 6-DFN (1.25x1)
