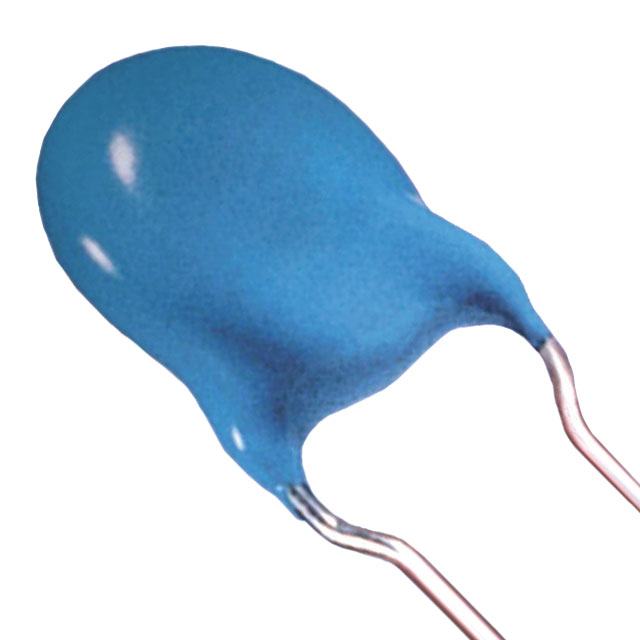

C901U101KUYDAAWL45

Active

KEMET

CAP CER 100PF 400VAC Y5P RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C901U101KUYDAAWL45

C901U101KUYDAAWL45

Active

KEMET

CAP CER 100PF 400VAC Y5P RADIAL

Deep-Dive with AI

DocumentsDatasheet C901U101KUYDAAWL45

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C901U101KUYDAAWL45

Applications	Safety
Capacitance	100 pF
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings	Y1, X1
Size / Dimension [diameter]	7 mm
Size / Dimension [diameter]	0.276 in
Temperature Coefficient	Y5P (B)
Tolerance	10 %
Voltage - Rated	400 VAC

C901U Series

...

Part	Lead Style	Applications	Package / Case	Mounting Type	Lead Spacing	Lead Spacing	Capacitance	Voltage - Rated	Ratings	Tolerance	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ratings [custom]	Ratings [custom]
KEMET C901U300JVSDCA7317	Formed Leads - Kinked	Safety	Disc Radial	Through Hole	0.394 in	10 mm	30 pF	400 VAC	X1 Y1	5 %	SL	125 °C	-40 °C	7 mm	0.276 in
KEMET C901U200JUSDCAWL35	Formed Leads - Kinked	Safety	Disc Radial	Through Hole	0.394 in	10 mm	20 pF	400 VAC	X1 Y1	5 %	SL	125 °C	-40 °C	7 mm	0.276 in
KEMET C901U471KZYDAAWL20	Straight	Safety	Disc Radial	Through Hole	0.394 in	10 mm	470 pF	440 VAC		10 %	Y5P (B)	125 °C	-40 °C	7 mm	0.276 in	2	1
KEMET C901U180JVSDBAWL40	Formed Leads - Kinked	Safety	Disc Radial	Through Hole	0.394 in	10 mm	18 pF	400 VAC	X1 Y1	5 %	SL	125 °C	-40 °C	7 mm	0.276 in
KEMET C901U222MYVDCAWL35	Formed Leads - Kinked	Safety	Disc Radial	Through Hole	0.394 in	10 mm	2200 pF	400 VAC		20 %	Y5V (F)	125 °C	-40 °C	7 mm	0.276 in	2	1
KEMET C901U220JZSDBAWL40	Formed Leads - Kinked	Safety	Disc Radial	Through Hole	0.394 in	10 mm	22 pF	440 VAC		5 %	SL	125 °C	-40 °C	7 mm	0.276 in	2	1
KEMET C901U102MVVDAAWL20	Straight	Safety	Disc Radial	Through Hole	0.394 in	10 mm	0.001 µF	400 VAC	X1 Y1	20 %	Y5V (F)	125 °C	-40 °C	7 mm	0.276 in
KEMET C901U101KUYDCAWL35	Formed Leads - Kinked	Safety	Disc Radial	Through Hole	0.394 in	10 mm	100 pF	400 VAC	X1 Y1	10 %	Y5P (B)	125 °C	-40 °C	7 mm	0.276 in
KEMET C901U101KUYDAAWL45	Straight	Safety	Disc Radial	Through Hole	0.394 in	10 mm	100 pF	400 VAC	X1 Y1	10 %	Y5P (B)	125 °C	-40 °C	7 mm	0.276 in
KEMET C901U510JYSDBA7317	Formed Leads - Kinked	Safety	Disc Radial	Through Hole	0.394 in	10 mm	51 pF	400 VAC		5 %	SL	125 °C	-40 °C	7 mm	0.276 in	2	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 0.21

Description

General part information

C901U Series

100 pF ±10% 400VAC Ceramic Capacitor Y5P (B) Radial, Disc

Documents

Technical documentation and resources

Datasheet

C901U101KUYDAAWL45

Datasheet
