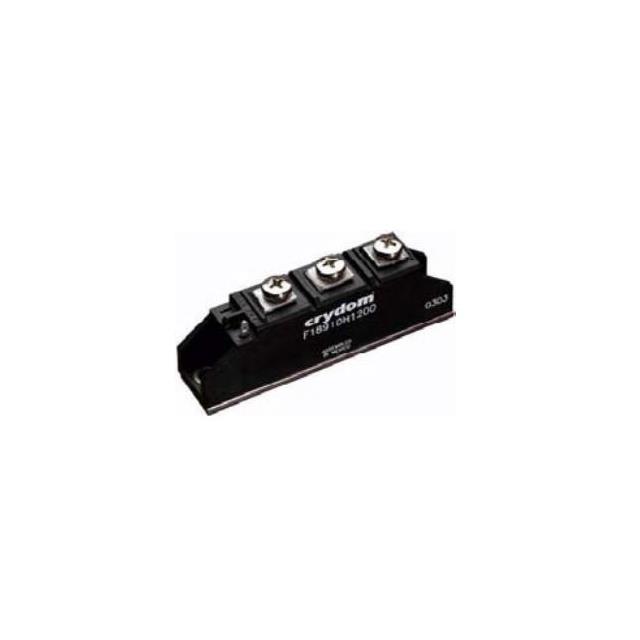

F18107SD400

Obsolete

Sensata-Crydom

MODULE SCR/DIODE 105A 120VAC

Search across all available documentation for this part.

Obsolete

Sensata-Crydom

MODULE SCR/DIODE 105A 120VAC

Technical Specifications

Parameters and characteristics for this part

Specification	F18107SD400

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	2250 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Off State	400 V

Part	Package / Case	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Technology	Current - Average Rectified (Io) (per Diode)	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure	Number of SCRs, Diodes	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Supplier Device Package
Sensata-Crydom F18107RD1000	Module	1.65 V	Standard Recovery >500ns	200 mA	1000 V	1 Pair Series Connection	Standard	105 A	Chassis Mount
Sensata-Crydom F18107HD1400	Module								Chassis Mount	2250 A	Series Connection - SCR/Diode	2 SCRs	150 mA	-40 °C	125 ¯C	1.4 kV
Sensata-Crydom F18107RD1200	Module	1.65 V	Standard Recovery >500ns	200 mA	1.2 kV	1 Pair Series Connection	Standard	105 A	Chassis Mount
Sensata-Crydom F18107HD1200	Module								Chassis Mount	2250 A	Series Connection - SCR/Diode	2 SCRs	150 mA	-40 °C	125 ¯C	1.2 kV
Sensata-Crydom F18107SD1600	Module								Chassis Mount	2250 A	Series Connection - All SCRs	2 SCRs	150 mA	-40 °C	125 ¯C	1.6 kV
Sensata-Crydom F18107SD400	Module								Chassis Mount	2250 A	Series Connection - All SCRs	2 SCRs	150 mA	-40 °C	125 ¯C	400 V
Sensata-Crydom F18107RD1400	Module	1.65 V	Standard Recovery >500ns	200 mA	1400 V	1 Pair Series Connection	Standard	105 A	Chassis Mount
Sensata-Crydom F18107D1600	Module		Standard Recovery >500ns	200 mA	600 V		Standard		Chassis Mount								Module
