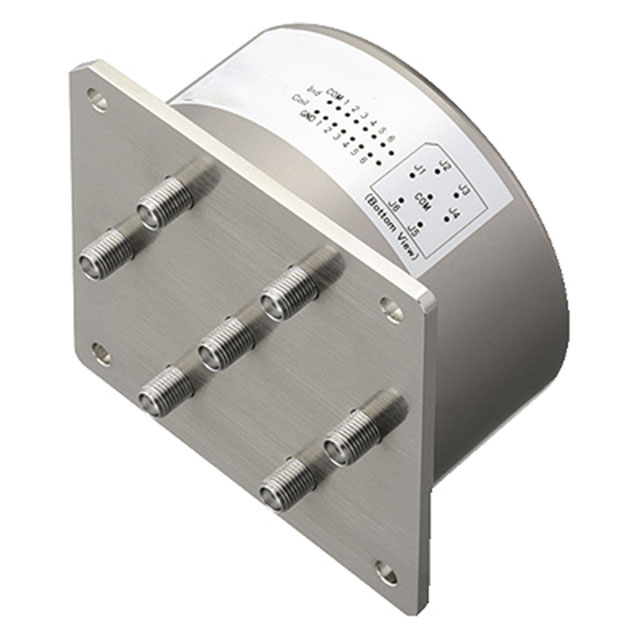

ARD30024
ActivePanasonic Electric Works
IC RF SWITCH SP6T 13GHZ
Deep-Dive with AI
Search across all available documentation for this part.
ARD30024
ActivePanasonic Electric Works
IC RF SWITCH SP6T 13GHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARD30024 |
|---|---|
| Circuit | SP6T |
| Frequency Range [Max] | 13 GHz |
| Frequency Range [Min] | 0 Hz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.3 dB |
| Isolation [Min] | 70 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Pin Contacts, Module |
| RF Type | General Purpose |
| Test Frequency | 8 GHz |
| Topology | Reflective |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1599.94 | |
Description
General part information
ARD300 Series
RF Switch IC General Purpose SP6T 13 GHz 50Ohm
