SFSA008GM1AA1TO-C-DB-216-STD

SWISSBIT

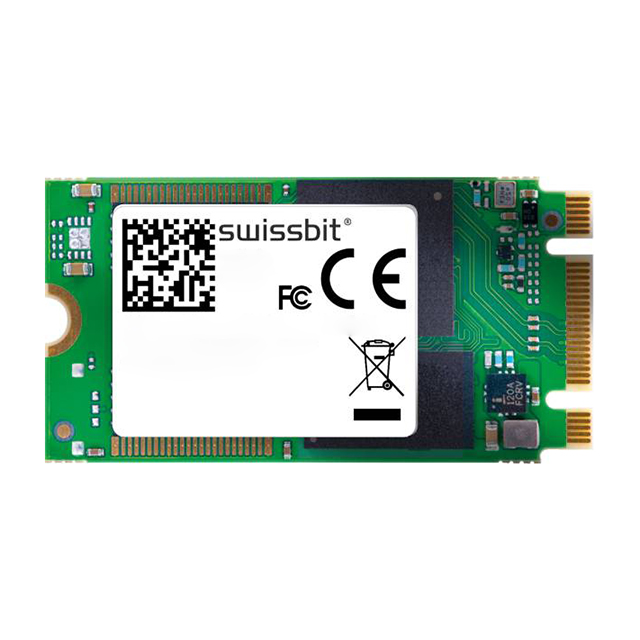

SSD 8GB M.2 SLC SATA III 3.3V

Search across all available documentation for this part.

SWISSBIT

SSD 8GB M.2 SLC SATA III 3.3V

Technical Specifications

Parameters and characteristics for this part

Specification	SFSA008GM1AA1TO-C-DB-216-STD

Current - Max [Max]	255 mA
Form Factor	M.2 Module
Memory Size	8 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	42 mm
Size / Dimension [y]	22 mm
Size / Dimension [z]	3.3 mm
Speed - Read	245 MB/s
Speed - Write	65 MB/s
Type	SATA III
Voltage - Supply	3.3 V

Part	Voltage - Supply	Speed - Write	Memory Size	Speed - Read	Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Form Factor	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Max [Max]
SWISSBIT SFSA008GM3AA1TO-C-DB-126-STD	3.3 V	65 MB/s	8 GB	245 MB/s	SATA III	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	M.2 Module
SWISSBIT SFSA008GU1AA1TO-I-DB-216-STD	3.3 V	65 MB/s	8 GB	245 MB/s	SATA III	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	mSATA	29.85 mm	2 in	3.5 mm	260 mA
SWISSBIT SFSA008GU3AA1TO-C-DB-226-STD	3.3 V	65 MB/s	8 GB	245 MB/s	SATA III	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	mSATA	29.85 mm	2 in	3.5 mm
SWISSBIT SFSA008GU3AA1TO-I-DB-226-STD	3.3 V	65 MB/s	8 GB	245 MB/s	SATA III	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	mSATA	29.85 mm	2 in	3.5 mm
SWISSBIT SFSA008GU2AA1TO-C-GS-216-STD	3.3 V	25 MB/s	8 GB	145 MB/s	SATA III	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	mSATA	29.85 mm	2 in	3.5 mm	210 mA
SWISSBIT SFSA008GU4AA1TO-C-GS-226-STD	3.3 V	450 MB/s	8 GB	520 MB/s	SATA III	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	mSATA	29.85 mm	2 in	3.3 mm	960 mA
SWISSBIT SFSA008GM1AA1TO-C-DB-216-STD	3.3 V	65 MB/s	8 GB	245 MB/s	SATA III	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	M.2 Module	22 mm	42 mm	3.3 mm	255 mA
SWISSBIT SFSA008GM1AA1TO-I-DB-216-STD	3.3 V	65 MB/s	8 GB	245 MB/s	SATA III	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	M.2 Module	22 mm	42 mm	3.3 mm	255 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 141.86

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 8GB SATA III M.2 Module 3.3V
