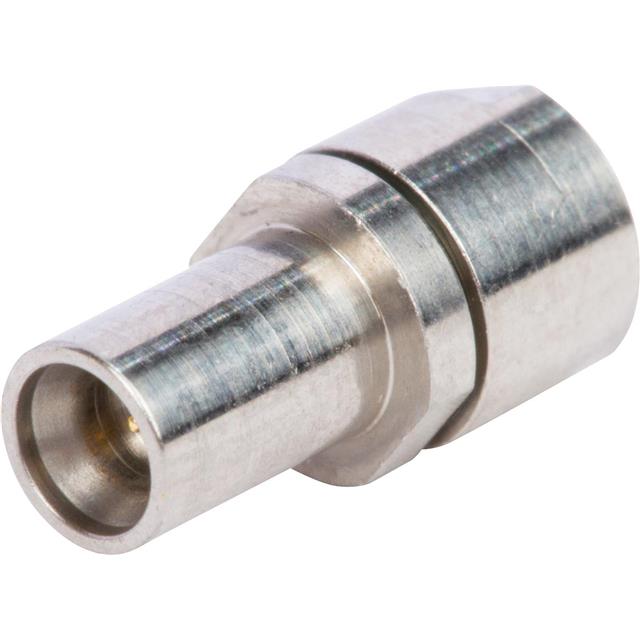

SF8032-6014
ActiveAmphenol SV Microwave
SMPM MALE TERMINATION, FD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF8032-6014 |
|---|---|
| Body Material | Stainless Steel |
| Connector Style | SMPM |
| Connector Type | Male Pin, Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Dielectric Material | Polyetherimide (PEI) |
| Features | Full Detent |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 158.41 | |
| 10 | $ 146.79 | |||
| 25 | $ 141.51 | |||
| 50 | $ 140.46 | |||
Description
General part information
SF8032 Series
Terminator Coax Connector Plug, Male Pin SMPM 50 Ohms
