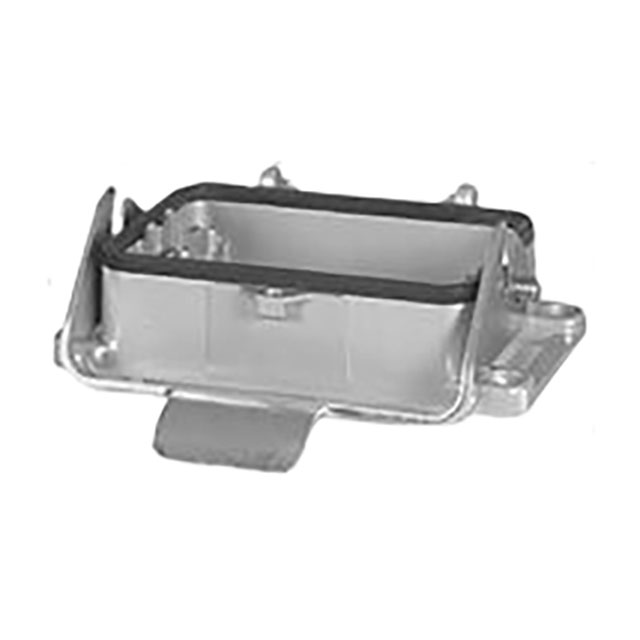

C14610F0480011

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE48

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE48

Technical Specifications

Parameters and characteristics for this part

Specification	C14610F0480011

Connector Type	Base - Panel Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E48
Size / Dimension [x]	165 mm
Size / Dimension [x]	6.496 in
Size / Dimension [y]	90 mm
Size / Dimension [y]	3.543 in
Size / Dimension [z]	43 mm
Size / Dimension [z]	1.693 "
Style	Bottom Entry

Part	Lock Location	Housing Material	Size	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
Amphenol Tuchel Industrial C14610F0480011	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	E48	Base - Panel Mount	100 °C	-40 °C	Bottom Entry	IP65 - Dust Tight Water Resistant	90 mm	165 mm	3.543 in	43 mm	1.693 "	6.496 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 64.23

General part information

Base - Panel Mount Connector Bottom Entry E48 IP65 - Dust Tight, Water Resistant
