245046020100868+

Active

Kyocera AVX

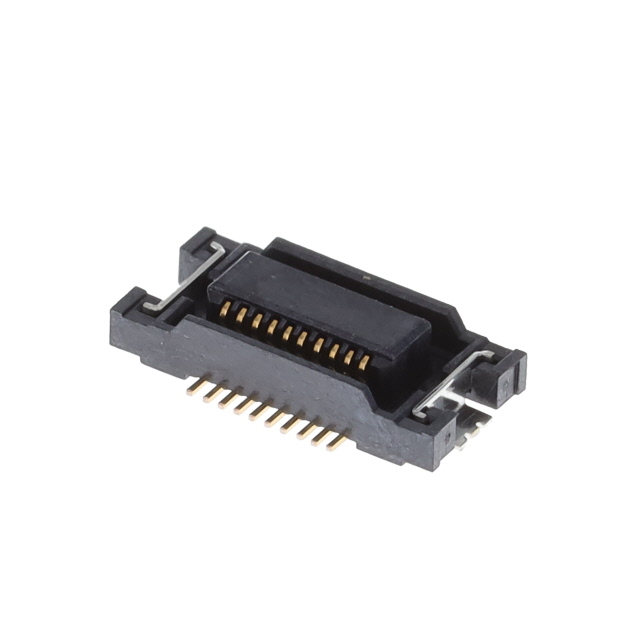

CONN RCPT 20POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

245046020100868+

Active

Kyocera AVX

CONN RCPT 20POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	245046020100868+

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.098 in
Height Above Board	2.5 mm
Mated Stacking Heights	3 mm, 3.5 mm, 4.5 mm, 4 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

245046 Series

Part	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights	Features	Number of Positions	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Kyocera AVX 245046120600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	120	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046120600829+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Solder Retention	120	Center Strip Contacts Receptacle	Surface Mount	4 Áin	0.1 Ám
Kyocera AVX 245046030600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	30	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046070600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	70	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046100600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	100	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046060600829+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Solder Retention	60	Center Strip Contacts Receptacle	Surface Mount	4 Áin	0.1 Ám
Kyocera AVX 245046040000868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm		40	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046080600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	80	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046020100868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Solder Retention	20	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046080100868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Solder Retention	80	Center Strip Contacts Receptacle	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.09
		10	$ 0.92
		100	$ 0.82
		500	$ 0.67
	Tape & Reel (TR)	1000	$ 0.45

Description

General part information

245046 Series

20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources
