SG73P2BTTD1541D

Active

KOA Speer Electronics, Inc.

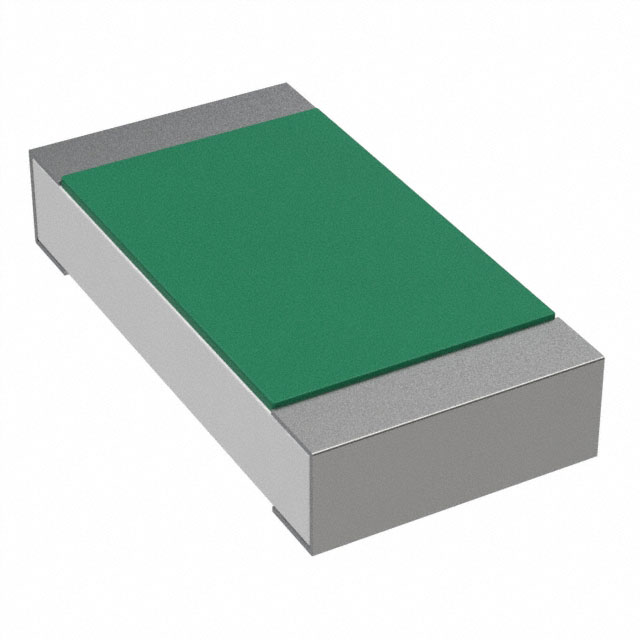

RES 1.54K OHM 0.5% 3/4W 1206

SG73P2BTTD1541D

Active

KOA Speer Electronics, Inc.

RES 1.54K OHM 0.5% 3/4W 1206

Description Specifications Series Pricing CAD Documents

Description

General part information

SG73P2B Series

1.54 kOhms ±0.5% 1W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film

Technical Specifications

Parameters and characteristics for this part

Specification	SG73P2BTTD1541D

Composition	Thick Film
Features	Pulse Withstanding, Automotive AEC-Q200
Height - Seated (Max)	0.028 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	1206 (3216 Metric)
Package Name	1206
Power (Watts)	750 mW, 1 W
Power (Watts) Options	3/4W
Ratings	AEC-Q200
Resistance	1.54 kOhm
Size / Dimension Length	0.126 in
Size / Dimension Width	0.063 in
Temperature Coefficient	100 ppm/°C
Tolerance	0.5 %

SG73P2B Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Composition	Features	Resistance	Tolerance	Height - Seated (Max)	Package Name	Number of Terminations	Temperature Coefficient	Ratings	Package / Case	Power (Watts)	Power (Watts) Options	Size / Dimension Width	Size / Dimension Length
KOA Speer Electronics, Inc. SG73P2BRTTD8662F	155 °C	-55 °C	Thick Film	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	86.6 kOhm	1 %	0.028 in	1206	2	200 ppm/°C	AEC-Q200	1206 (3216 Metric)	750 mW	3/4W	0.063 in	0.126 in
KOA Speer Electronics, Inc. SG73P2BTTD1541D	155 °C	-55 °C	Thick Film	Automotive AEC-Q200 Pulse Withstanding	1.54 kOhm	0.5 %	0.028 in	1206	2	100 ppm/°C	AEC-Q200	1206 (3216 Metric)	1 W 750 mW	3/4W	0.063 in	0.126 in
KOA Speer Electronics, Inc. SG73P2BRTTD8450F	155 °C	-55 °C	Thick Film	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	845 Ohm	1 %	0.028 in	1206	2	200 ppm/°C	AEC-Q200	1206 (3216 Metric)	750 mW	3/4W	0.063 in	0.126 in
KOA Speer Electronics, Inc. SG73P2BRTTD5900D	155 °C	-55 °C	Thick Film	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	590 Ohm	0.5 %	0.028 in	1206	2	200 ppm/°C	AEC-Q200	1206 (3216 Metric)	750 mW	3/4W	0.063 in	0.126 in
KOA Speer Electronics, Inc. SG73P2BRTTD36R5F	155 °C	-55 °C	Thick Film	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	36.5 Ohm	1 %	0.028 in	1206	2	200 ppm/°C	AEC-Q200	1206 (3216 Metric)	750 mW	3/4W	0.063 in	0.126 in
KOA Speer Electronics, Inc. SG73P2BTTD1023F	155 °C	-55 °C	Thick Film	Automotive AEC-Q200 Pulse Withstanding	102 kOhm	1 %	0.028 in	1206	2	100 ppm/°C	AEC-Q200	1206 (3216 Metric)	750 mW	3/4W	0.063 in	0.126 in
KOA Speer Electronics, Inc. SG73P2BTTD1580D	155 °C	-55 °C	Thick Film	Automotive AEC-Q200 Pulse Withstanding	158 Ohm	0.5 %	0.028 in	1206	2	200 ppm/°C	AEC-Q200	1206 (3216 Metric)	1 W 750 mW	3/4W	0.063 in	0.126 in
KOA Speer Electronics, Inc. SG73P2BTTD1370F	155 °C	-55 °C	Thick Film	Automotive AEC-Q200 Pulse Withstanding	137 Ohm	1 %	0.028 in	1206	2	200 ppm/°C	AEC-Q200	1206 (3216 Metric)	750 mW	3/4W	0.063 in	0.126 in
KOA Speer Electronics, Inc. SG73P2BRTTD6812D	155 °C	-55 °C	Thick Film	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	68.1 kOhm	0.5 %	0.028 in	1206	2	200 ppm/°C	AEC-Q200	1206 (3216 Metric)	750 mW	3/4W	0.063 in	0.126 in
KOA Speer Electronics, Inc. SG73P2BTTD9760F	155 °C	-55 °C	Thick Film	Automotive AEC-Q200 Pulse Withstanding	976 Ohm	1 %	0.028 in	1206	2	100 ppm/°C	AEC-Q200	1206 (3216 Metric)	750 mW	3/4W	0.063 in	0.126 in
