CY9AF342NABGL-GK9E1

Active

Infineon Technologies

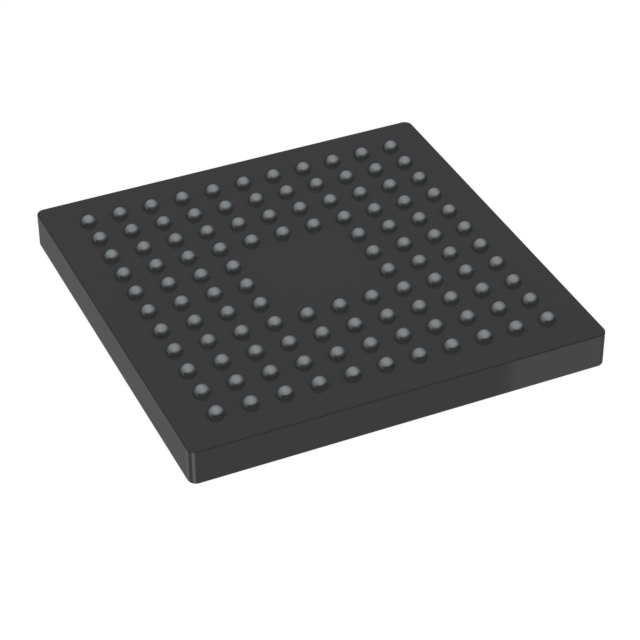

IC MCU 32BIT 160KB FLASH 112FBGA

Search across all available documentation for this part.

Active

Infineon Technologies

IC MCU 32BIT 160KB FLASH 112FBGA

Technical Specifications

Parameters and characteristics for this part

Part	Program Memory Type	RAM Size	Number of I/O	Mounting Type	Speed	Program Memory Size	Core Processor	Core Size	Peripherals	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Connectivity	Data Converters	Data Converters	Oscillator Type	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]
Infineon Technologies CY9AF342MABGL-GK9E1	FLASH	16 K	66 I/O	Surface Mount	40 MHz	160 KB	ARM® Cortex®-M3	32-Bit	DMA LVD POR PWM WDT	96-FBGA (6x6)	85 °C	-40 °C	3.6 V	1.65 V	96-LFBGA	CSIO EBI/EMI I2C UART/USART USB	SAR	12 b 17	External Internal
Infineon Technologies CY9AF342NBPMC-G-JNE2	FLASH	16 K	83	Surface Mount	40 MHz	160 KB	ARM® Cortex®-M3	32-Bit Single-Core	DMA LVD POR PWM WDT	100-LQFP (14x14)	85 °C	-40 °C	3.6 V	1.65 V	100-LQFP	CSIO EBI/EMI I2C UART/USART USB			Internal	12	24
Infineon Technologies CY9AF342LAPMC-G-MNE2
Infineon Technologies CY9AF342LAPMC-GNE2	FLASH	16 K	51	Surface Mount	40 MHz	160 KB	ARM® Cortex®-M3	32-Bit	DMA LVD POR PWM WDT	64-LQFP (12x12)	85 °C	-40 °C	3.6 V	1.65 V	64-LQFP	CSIO I2C UART/USART USB	A/D 12x12b SAR		External Internal
Infineon Technologies CY9AF342NABGL-GK9E1	FLASH	16 K	83	Surface Mount	40 MHz	160 KB	ARM® Cortex®-M3	32-Bit	DMA LVD POR PWM WDT	112-PFBGA (10x10)	85 °C	-40 °C	3.6 V	1.65 V	112-LFBGA	CSIO EBI/EMI I2C UART/USART USB			External Internal		24	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1980	$ 6.35

General part information

ARM® Cortex®-M3 FM3 MB9A340NB Microcontroller IC 32-Bit 40MHz 160KB (160K x 8) FLASH 112-PFBGA (10x10)

Technical documentation and resources

No documents available
