776275-1

Active

TE Connectivity AMP Connectors

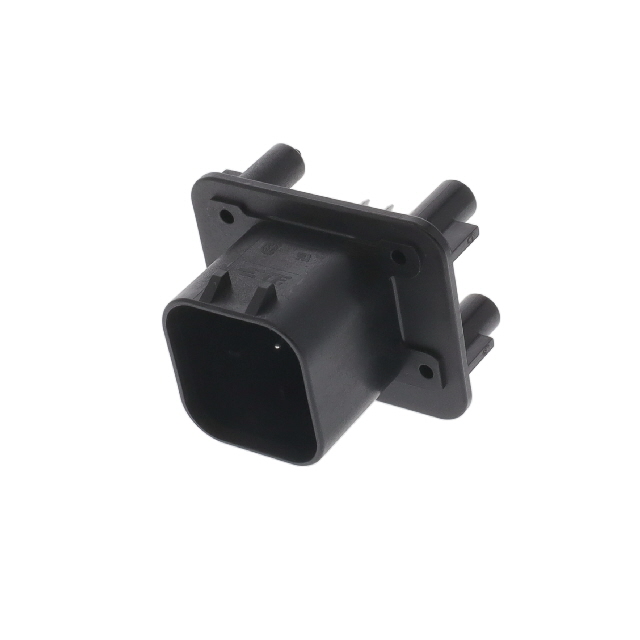

CONN HEADER VERT 8POS 4MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 4MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	776275-1	776275 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealable, Mounting Flange	Sealable, Mounting Flange
Insulation Color	Black	Black, Natural
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN HEADER VERT 8POS 4MM

Part	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Finish - Mating	Fastening Type	Shrouding	Current Rating (Amps)	Connector Type	Number of Positions Loaded	Voltage Rating	Style	Termination	Mounting Type	Features	Insulation Color	Contact Shape	Contact Material	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Applications	Number of Rows	Pitch - Mating	Pitch - Mating
TE Connectivity AMP Connectors 1-776275-1	8	125 °C	-40 °C	Polybutylene Terephthalate (PBT), Glass Filled	Gold-Palladium	Locking Ramp	Shrouded - 4 Wall	Varies by Wire Gauge	Header	All	250 VAC	Board to Cable/Wire	Solder	Panel Mount, Through Hole	Mounting Flange, Sealable	Black	Circular	Brass	Male Pin	0.157 in	4 mm	Automotive, Industrial	3	0.157 "	4 mm
TE Connectivity AMP Connectors 776275-2	8	105 ░C	-40 °C	Polybutylene Terephthalate (PBT), Glass Filled		Locking Ramp	Shrouded - 4 Wall	Varies by Wire Gauge	Header	All	250 VAC	Board to Cable/Wire	Solder	Panel Mount, Through Hole	Mounting Flange, Sealable	Natural	Circular	Brass	Male Pin	0.157 in	4 mm	Automotive, Industrial	3	0.157 "	4 mm
TE Connectivity AMP Connectors 776275-1	8	105 ░C	-40 °C	Polybutylene Terephthalate (PBT), Glass Filled		Locking Ramp	Shrouded - 4 Wall	Varies by Wire Gauge	Header	All	250 VAC	Board to Cable/Wire	Solder	Panel Mount, Through Hole	Mounting Flange, Sealable	Black	Circular	Brass	Male Pin	0.157 in	4 mm	Automotive, Industrial	3	0.157 "	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Panel Mount, Through Hole 8 position 0.157" (4.00mm)
