1898/12C SL001

Active

ALPHA WIRE

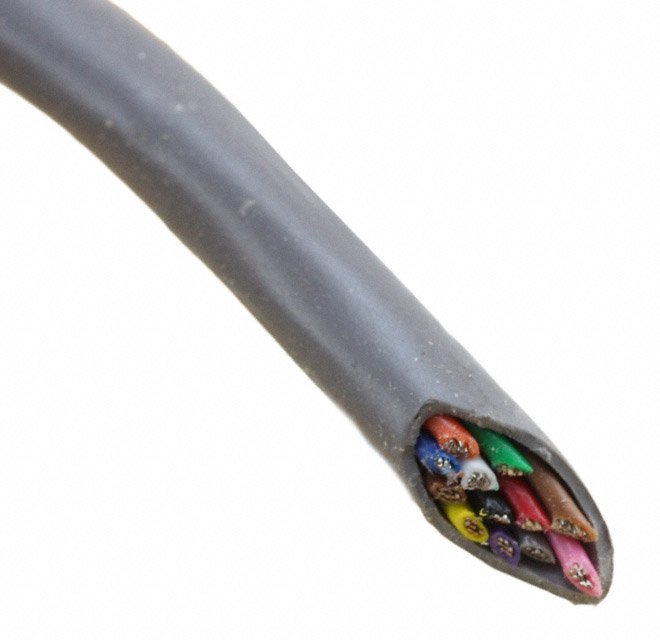

CABLE 12COND 18AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 18AWG SLATE 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1898/12C SL001	1898/12C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	16	16
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.378 in	0.378 in
Jacket (Insulation) Diameter [diameter]	9.6 mm	9.6 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in	0.025 in
Jacket (Insulation) Thickness	0.635 mm	0.635 mm
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	12	12
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	18 AWG	18 AWG

CABLE 12COND 18AWG SLATE 1000'

Part	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Usage	Length	Length	Conductor Insulation	Jacket (Insulation) Material	Voltage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE 1898/12C SL001	16	30 AWG	Multi-Conductor	0.025 in	0.635 mm	18 AWG	12	-20 C	80 C	Slate	Communication, Control	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 V	Copper, Tinned	0.378 in	9.6 mm
ALPHA WIRE 1898/12C SL005	16	30 AWG	Multi-Conductor	0.025 in	0.635 mm	18 AWG	12	-20 C	80 C	Slate	Communication, Control			Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 V	Copper, Tinned	0.378 in	9.6 mm	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Conductor Multi-Conductor Cable Slate 18 AWG 1000.0' (304.8m)
