PWCD-515PC19-15A-06F-BLK

Active

Unirise USA

CORD 5/15P - C19 14AWG BLACK 6FT

Deep-Dive with AI

Search across all available documentation for this part.

PWCD-515PC19-15A-06F-BLK

Active

Unirise USA

CORD 5/15P - C19 14AWG BLACK 6FT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.08
		20	$ 14.78
		60	$ 14.48
		100	$ 14.18
		200	$ 13.88

Description

General part information

PWCD Series

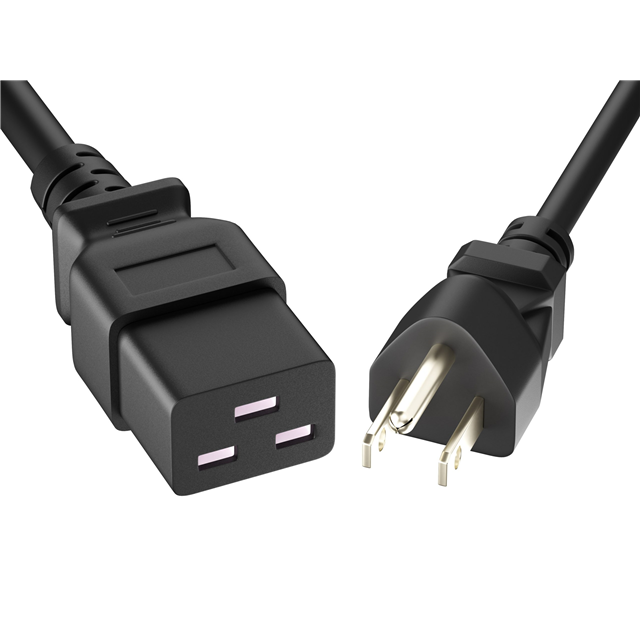

6.00' (1.83m) Power Cord Black NEMA 5-15P To IEC 320-C19 SJT

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PWCD-515PC19-15A-06F-BLK	PWCD Series

1st Connector	NEMA 5-15P	NEMA L6-20P, IEC 320-C14, NEMA 5-15P, IEC 320-C13, IEC 320-C19
2nd Connector	IEC 320-C19	IEC 320-C15, IEC 320-C7, IEC 320-C19, NEMA 5-15R, IEC 320-C14, IEC 320-C20
Approval Agency Marking	UL	UL, cUL, CSA, cUL, UL
Approved Countries	United States	United States, Canada
Color	Black	Black, Blue, Green, Red
Cord Type	SJT	SJT, SPT-2, SJTW, SVT
Current Rating (Amps)	15 A	10 - 20 A
Features	-	Locking
Length	6 ft	1 - 12 ft
Length	1.83 m	1.52 - 609.6 m
Length	-	2 - 50 ft
Length	-	1.22 - 2.44 m
Number of Conductors	3	3
Operating Temperature	-	105 C
Shielding	Unshielded	Unshielded
Style	Male Pins, Female Sockets	Male Pins, Female Sockets
Voltage Rating	125 VDC	125 - 250 VDC
Wire Gauge	13.5 AWG	12 - 18 AWG

PWCD Series

CORD L6/20P - C15 14AWG 12FT

Part	Approved Countries	2nd Connector	Cord Type	Wire Gauge	Number of Conductors	Length	Length	Current Rating (Amps)	Color	Style	Approval Agency Marking	Features	Voltage Rating	1st Connector	Shielding	Length [x]	Length [x]	Operating Temperature
Unirise USA PWCD-L620PC15-15A-12F-BLK	Canada, United States	IEC 320-C15	SJT	13.5 AWG	3	3.66 m	12 ft	15 A	Black	Female Sockets, Male Pins	cUL, UL	Locking	250 VDC	NEMA L6-20P
Unirise USA PWCD-C7C14-10A-06F-BLK	Canada, United States	IEC 320-C7	SPT-2	18 AWG	3	1.83 m	6 ft	10 A	Black	Female Sockets, Male Pins	cUL, UL			IEC 320-C14
Unirise USA PWCD-515PC19-15A-06F-BLK	United States	IEC 320-C19	SJT	13.5 AWG	3	1.83 m	6 ft	15 A	Black	Female Sockets, Male Pins	UL		125 VDC	NEMA 5-15P	Unshielded
Unirise USA PWCD-C14C15-15A-12F-BLK	United States	IEC 320-C15	SJT	13.5 AWG	3	3.66 m	12 ft	15 A	Black	Female Sockets, Male Pins	UL		250 VDC	IEC 320-C14	Unshielded
Unirise USA PWCD-515P515R-15A-50F-BLK	Canada, United States	NEMA 5-15R	SJTW	13.5 AWG	3	15.24 m		15 A	Black	Female Sockets, Male Pins	cUL, UL		125 VDC	NEMA 5-15P		50 ft
Unirise USA PWCD-C13C14-15A-04F-BLU	Canada, United States	IEC 320-C14	SJT	13.5 AWG	3			15 A	Blue	Female Sockets, Male Pins	CSA, cUL, UL		250 VDC	IEC 320-C13		4 ft	1.22 m
Unirise USA PWCD-515PC13-10A-04F-GRN	United States		SVT	18 AWG	3			10 A	Green	Female Sockets, Male Pins	UL		125 VDC	NEMA 5-15P	Unshielded	4 ft	1.22 m	105 C
Unirise USA PWCD-C13C14-15A-06F-BLU	Canada, United States	IEC 320-C14	SJT	13.5 AWG	3	1.83 m	6 ft	15 A	Blue	Female Sockets, Male Pins	CSA, cUL, UL		250 VDC	IEC 320-C13
Unirise USA PWCD-C14C15-15A-09F-BLU	United States	IEC 320-C15	SJT	13.5 AWG	3	2.74 m	9 '	15 A	Blue	Female Sockets, Male Pins	UL		250 VDC	IEC 320-C14	Unshielded
Unirise USA PWCD-C19C20-20A-08F-BLK	United States	IEC 320-C20	SJT	12 AWG	3			20 A	Black	Female Sockets, Male Pins	UL		250 VDC	IEC 320-C19	Unshielded	8 ft	2.44 m	105 C
