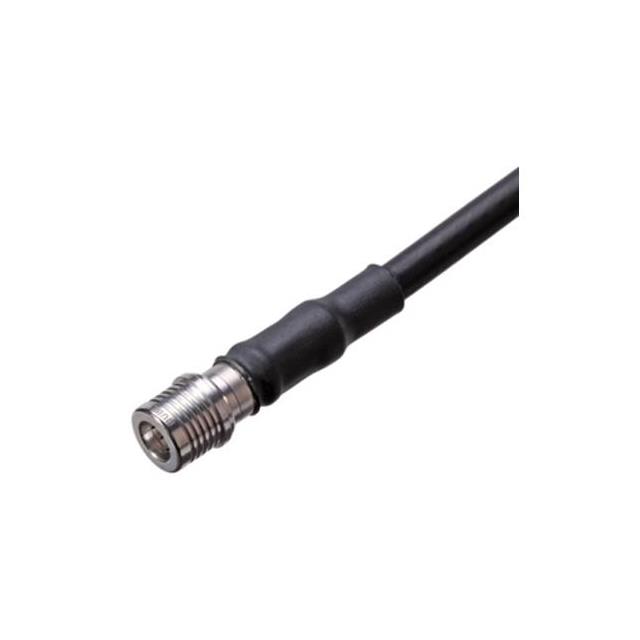

Specification	11_QMA-W50-4-3/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	QMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max	18 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp
Voltage Rating	480 VAC

11_QMA-W50 Series

Part	Center Contact Material	Mounting Type	Fastening Type	Contact Termination	Connector Style	Cable Group	Shield Termination	Impedance	Housing Color	Connector Type	Number of Ports	Frequency - Max	Body Material	Voltage Rating	Mating Cycles	Body Finish	Center Contact Plating	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)
Huber+Suhner, Inc. 11_QMA-W50-4-3/133_NE	Brass	Free Hanging (In-Line)	Push-Pull	Solder	QMA	LMR-240	Crimp	50 Ohm	Silver	Male Pin Plug	1	18 GHz	Brass	480 VAC	100 cycles	White Bronze	Gold	Polytetrafluoroethylene (PTFE)	-40 °C	105 °C
Huber+Suhner, Inc. 11_QMA-W50-4-4/19-_NE	Beryllium Copper	Free Hanging (In-Line)	Push-Pull	Crimp	QMA	RG-B4C	Clamp	50 Ohm	Silver	Male Pin Plug	1	6000 MHz	Stainless Steel	480 VAC	100 cycles		Gold	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C
Huber+Suhner, Inc. 11_QMA-W50-2-8/133_NH	Brass	Free Hanging (In-Line)	Push-Pull	Solder	QMA	316 RG-174	Crimp	50 Ohm	Silver	Male Pin Plug	1	18 GHz	Brass	480 VAC	100 cycles	White Bronze	Gold	Polytetrafluoroethylene (PTFE)	-40 °C	105 °C
Huber+Suhner, Inc. 11_QMA-W50-3-7/113_NE	Brass	Free Hanging (In-Line)	Snap-On	Solder	QMA	RG-141	Solder	50 Ohm	Gold	Male Pin Plug	1	18 GHz	Brass	480 VAC	100 cycles	Gold	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	-40 °C	105 °C
