951244-4620-AR-PR

Obsolete

3M (TC)

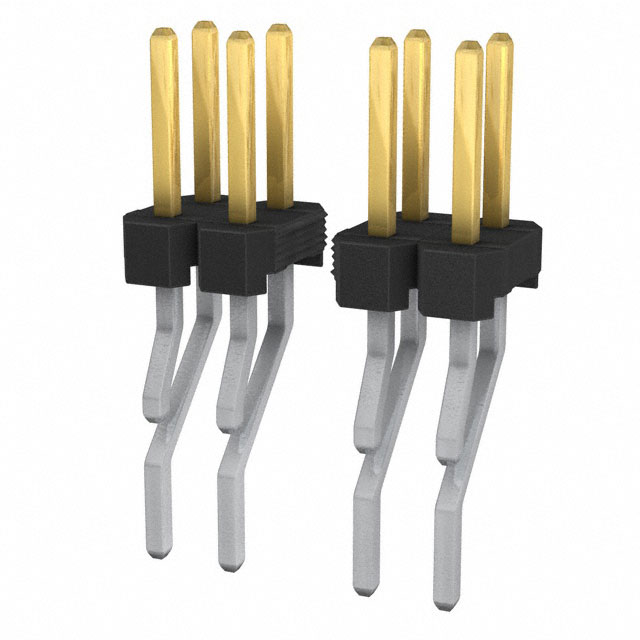

CONN HEADER SMD R/A 44POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

951244-4620-AR-PR

Obsolete

3M (TC)

CONN HEADER SMD R/A 44POS 2MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	951244-4620-AR-PR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	4.45 mm
Contact Length - Mating	0.175 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

951244 Series

Part	Mounting Type	Contact Finish Thickness - Mating	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Connector Type	Contact Length - Post [x]	Contact Length - Post	Material Flammability Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Positions	Contact Finish - Mating	Fastening Type	Contact Material	Termination	Features	Insulation Height [custom]	Insulation Height [custom]
3M (TC) 951244-8622-AR	Through Hole	Flash	Unshrouded	0.06 in	1.52 mm	4.4 mm	0.173 in	Tin	Header	0.11 in	2.79 mm	UL94 V-0	Thermoplastic	-55 °C	125 °C	Male Pin	2	All	0.079 in	2 mm	0.079 in	2 mm	Square	1 çm	39.4 çin	8.7 mm	0.343 in	Black	44	Gold	Push-Pull	Copper Alloy	Solder
3M (TC) 951244-2520-AR-TP	Surface Mount	Flash	Unshrouded	0.06 in	1.52 mm	4 mm	0.157 in	Tin	Header			UL94 V-0	Thermoplastic	-25 °C	105 ░C	Male Pin	2	All	0.079 in	2 mm	0.079 in	2 mm	Square	1 çm	39.4 çin			Black	44	Gold	Push-Pull	Copper Alloy	Solder
3M (TC) 951244-2520-AR-PR	Surface Mount	Flash	Unshrouded	0.06 in	1.52 mm	4 mm	0.157 in	Tin	Header			UL94 V-0	Thermoplastic	-25 °C	105 ░C	Male Pin	2	All	0.079 in	2 mm	0.079 in	2 mm	Square	1 çm	39.4 çin			Black	44	Gold	Push-Pull	Copper Alloy	Solder	Pick and Place
3M (TC) 951244-4620-AR-PR	Surface Mount Right Angle	Flash	Unshrouded			4.45 mm	0.175 in	Tin	Header			UL94 V-0	Thermoplastic	-25 °C	105 ░C	Male Pin	2	All	0.079 in	2 mm	0.079 in	2 mm	Square	1 çm	39.4 çin			Black	44	Gold	Push-Pull	Copper Alloy	Solder	Pick and Place	0.157 in	4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.56
		10	$ 6.84
	Tape & Reel (TR)	500	$ 4.99

Description

General part information

951244 Series

Connector Header Surface Mount, Right Angle 44 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet
