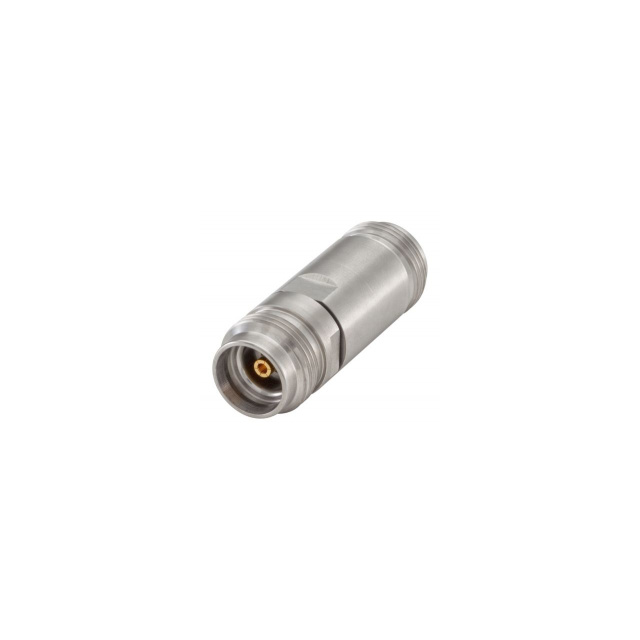

53QK105-K00S3

Active

Rosenberger

N TYPE ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

N TYPE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	53QK105-K00S3

Adapter Series	N to RPC-N
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.21 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Body Material	Style	Adapter Series	Impedance	Convert To (Adapter End)	Mounting Type	Center Contact Material	Adapter Type	Center Contact Plating	Convert From (Adapter End)	Fastening Type	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Frequency - Max [Max]	Center Gender	Insertion Loss	Dielectric Material
Rosenberger 53QK105-K00S3	Stainless Steel	Straight	N to RPC-N	50 Ohms	Female Socket N Jack	Free Hanging (In-Line)	Beryllium Copper	Jack to Jack	Gold	Female Socket N Jack	Snap-On	Between Series	85 °C	-40 °C	500	18 GHz	Female to Female	0.21 dB	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
