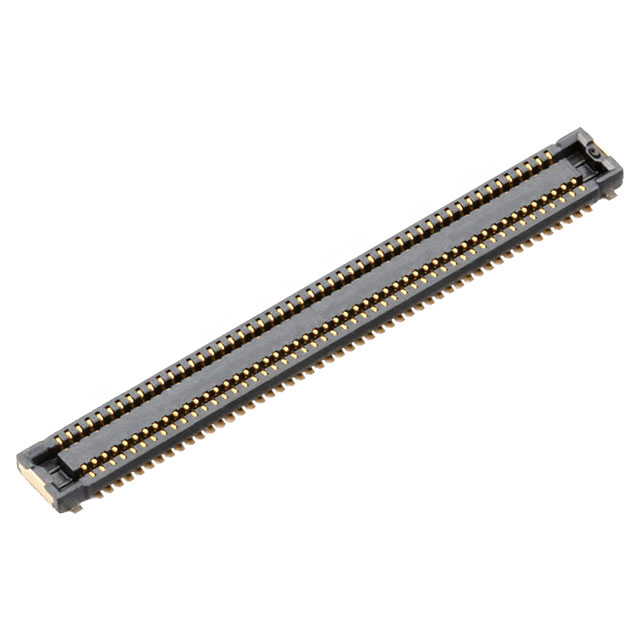

AXF5A0012A

Active

Panasonic Electric Works

CONN SOCKET 100POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5A0012A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Contact Finish	Connector Type	Number of Rows	Features
Panasonic Electric Works AXF5A0012A	0.8 mm	0.03 in	0.75 mm	0.35 mm	0.014 in	100	Surface Mount	Gold	Socket Center Strip Contacts	2	Solder Retention
