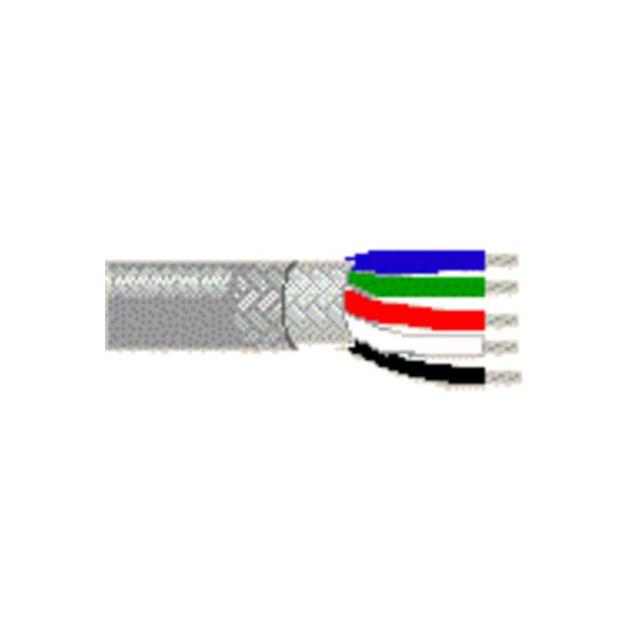

8405 060250

Active

Belden Inc.

5 #20 PE SHLD PVC

Search across all available documentation for this part.

Active

Belden Inc.

5 #20 PE SHLD PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8405 060250

Cable Type	Microphone
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Diameter [diameter]	7.14 mm
Jacket (Insulation) Diameter [diameter]	0.281 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	3000 "
Length	76.2 m
Number of Conductors	5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	AWM Style 2094
Shield Coverage	85 %
Shield Material	Viscose; Copper, Tinned
Shield Type	Double Braid
Usage	Audio
Voltage	300 V
Wire Gauge	20 AWG

Part	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Ratings	Number of Conductors	Usage	Conductor Insulation	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Material	Length	Length	Voltage	Jacket Color	Wire Gauge	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 8405 0601000	Microphone	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	AWM Style 2094	5	Audio	Polyethylene (PE)	85 %	19	32 AWG	7.14 mm	0.281 in	Double Braid	Copper Tinned	1000 ft	304.8 m	300 V	Chrome	20 AWG	Viscose; Copper Tinned	-20 C	60 °C
Belden Inc. 8405 060250	Microphone	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	AWM Style 2094	5	Audio	Polyethylene (PE)	85 %	19	32 AWG	7.14 mm	0.281 in	Double Braid	Copper Tinned	3000 "	76.2 m	300 V	Chrome	20 AWG	Viscose; Copper Tinned	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 5.89

General part information

5 Conductor Microphone Cable Chrome 20 AWG Double Braid 250.0' (76.2m)
