BU-00225-2

Active

MUELLER ELECTRIC

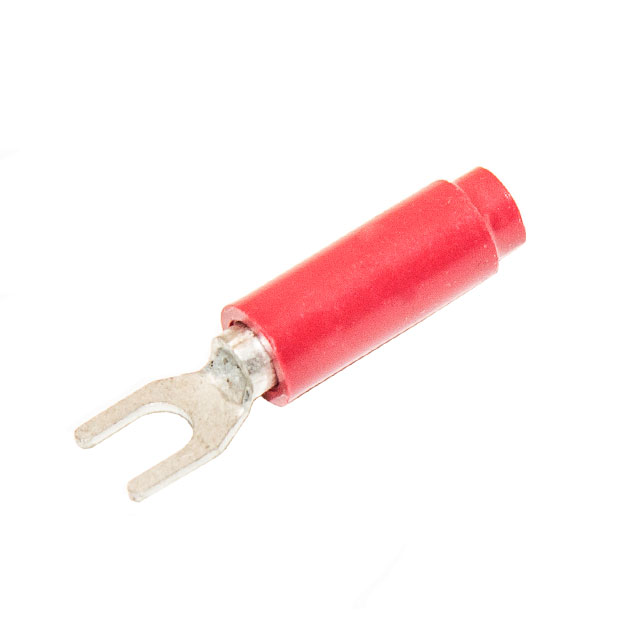

THREADED SPADE LUG,RED,BULK

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

THREADED SPADE LUG,RED,BULK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BU-00225-2	BU-00225 Series

Color	Red	Black, Red
Contact Finish	Zinc	Zinc
Contact Material	Brass	Brass
Insulation	Insulated	Insulated
Length - Overall [x]	1.5 in	1.5 in
Length - Overall [x]	38.1 mm	38.1 mm
Material - Insulation	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Terminal Type	Standard	Standard
Termination	Threaded	Threaded
Tongue Inside Opening [x]	0.205 in	0.205 in
Tongue Inside Opening [x]	5.21 mm	5.21 mm
Width - Outer Edges [y]	9.02 mm	9.02 mm
Width - Outer Edges [y]	0.355 in	0.355 in

THREADED SPADE LUG,BLACK,BULK

Part	Insulation	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Length - Overall [x]	Length - Overall [x]	Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Contact Material	Contact Finish	Mounting Type	Material - Insulation
MUELLER ELECTRIC BU-00225-0	Insulated	Black	9.02 mm	0.355 in	Standard	1.5 in	38.1 mm	Threaded	0.205 in	5.21 mm	Brass	Zinc	Free Hanging (In-Line)	Acrylonitrile Butadiene Styrene (ABS)
MUELLER ELECTRIC BU-00225-2	Insulated	Red	9.02 mm	0.355 in	Standard	1.5 in	38.1 mm	Threaded	0.205 in	5.21 mm	Brass	Zinc	Free Hanging (In-Line)	Acrylonitrile Butadiene Styrene (ABS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red Spade Terminal Connector Threaded
