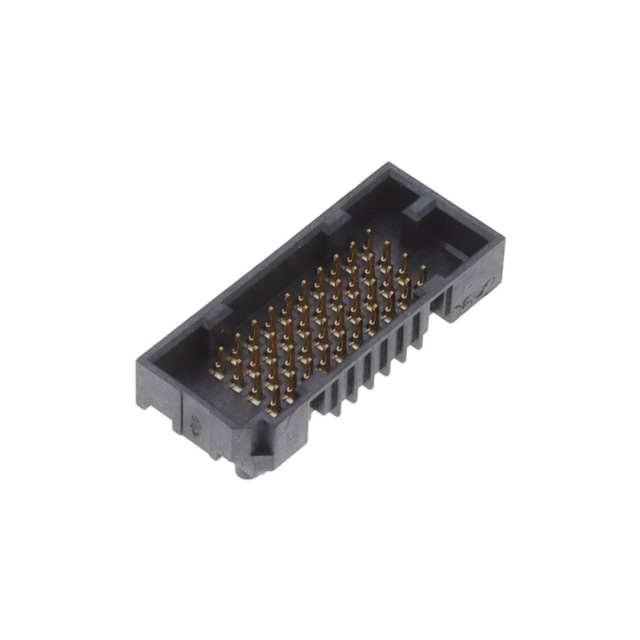

LPAM-10-01.5-L-04-2-K-TR
ActiveSamtec Inc.
.050" LP ARRAY HIGH-SPEED HIGH-
Deep-Dive with AI
Search across all available documentation for this part.
LPAM-10-01.5-L-04-2-K-TR
ActiveSamtec Inc.
.050" LP ARRAY HIGH-SPEED HIGH-
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LPAM-10-01.5-L-04-2-K-TR |
|---|---|
| Connector Type | Male Pins, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place, Board Guide |
| Height Above Board | 0.165 " |
| Height Above Board | 4.2 mm |
| Mated Stacking Heights | 4.5 mm, 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.12 | |
| 10 | $ 9.35 | |||
| 25 | $ 8.84 | |||
| 50 | $ 8.52 | |||
| 100 | $ 6.96 | |||
| Digi-Reel® | 1 | $ 10.12 | ||
| 10 | $ 9.35 | |||
| 25 | $ 8.84 | |||
| 50 | $ 8.52 | |||
| 100 | $ 6.96 | |||
| Tape & Reel (TR) | 575 | $ 6.43 | ||
| 1150 | $ 6.19 | |||
Description
General part information
LPAM-10 Series
40 Position Connector Array, Male Pins Surface Mount Gold
