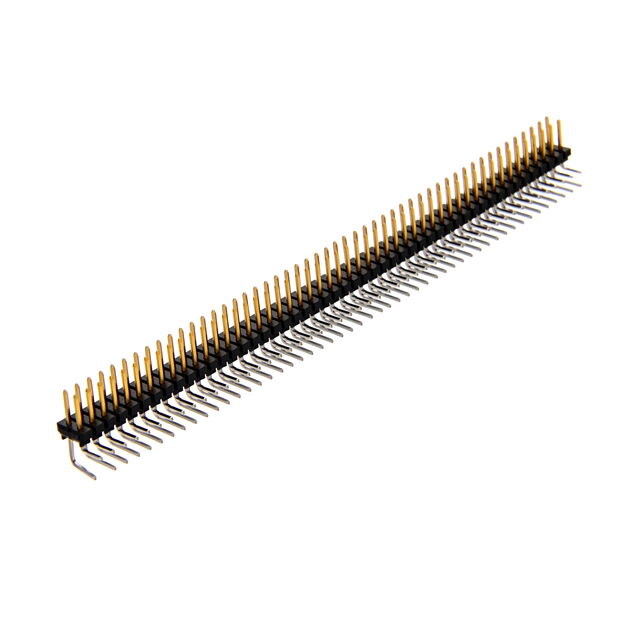

XG8B-0134

Active

Omron Electronics Inc-EMC Div

CONN HEADER R/A 100P 2.54MM

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN HEADER R/A 100P 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XG8B-0134	XG8B Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.15 µm	0.15 µm
Contact Finish Thickness - Mating	5.9 µin	5.9 µin
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	6 mm	6 mm
Contact Length - Mating	0.236 in	0.236 in
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Brass, Nickel	Brass, Nickel
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.244 in	0.244 in
Insulation Height	6.2 mm	6.2 mm
Insulation Height	-	2.7 mm
Insulation Height	-	0.106 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	100	100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.453 in
Overall Contact Length	-	11.5 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

CONN HEADER VERT 100POS 2.54MM

Part	Current Rating (Amps)	Contact Shape	Contact Type	Mounting Type	Contact Finish - Post	Number of Positions	Insulation Material	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Connector Type	Overall Contact Length	Overall Contact Length	Style	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Fastening Type	Shrouding	Insulation Color	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height
Omron Electronics Inc-EMC Div XG8B-0131	3 A	Square	Male Pin	Through Hole	Tin	100	Polybutylene Terephthalate (PBT), Glass Filled	All	2.7 mm	0.106 in	Header	0.453 in	11.5 mm	Board to Board, Cable	300 VDC	0.1 in	2.54 mm	6 mm	0.236 in	UL94 V-0	Push-Pull	Unshrouded	Black	2	0.15 µm	5.9 µin	Solder	Gold	0.11 in	2.79 mm	2.54 mm	0.1 in	2 çm	78.7 çin	Brass, Nickel	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XG8B-0134	3 A	Square	Male Pin	Through Hole, Right Angle	Tin	100	Polybutylene Terephthalate (PBT), Glass Filled	All			Header			Board to Board, Cable	300 VDC	0.1 in	2.54 mm	6 mm	0.236 in	UL94 V-0	Push-Pull	Unshrouded	Black	2	0.15 µm	5.9 µin	Solder	Gold	0.11 in	2.79 mm	2.54 mm	0.1 in	2 çm	78.7 çin	Brass, Nickel	105 ░C	-55 °C	0.244 in	6.2 mm
