SFMH-120-02-L-D-LC

Active

Samtec Inc.

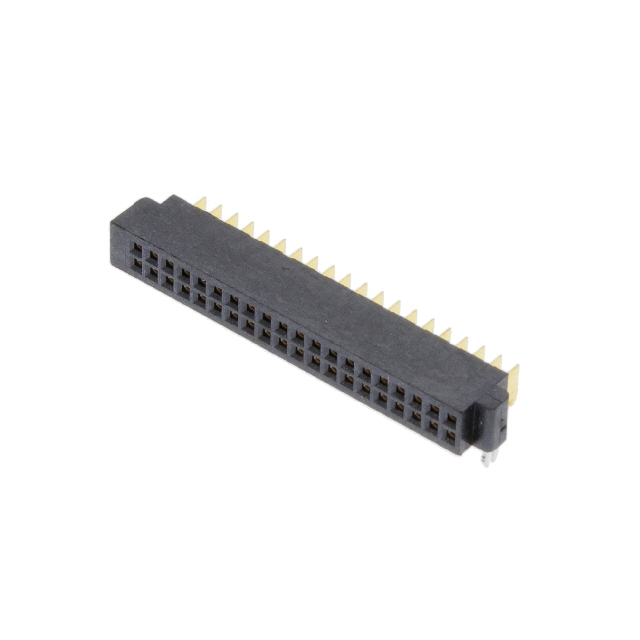

CONN RCPT 40P 0.05 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFMH-105-02-F-D-LC Datasheet 02 .050" Tiger Eye™ High-Reliability Socket Strip, Horizontal Mount +1

SFMH-120-02-L-D-LC

Active

Samtec Inc.

CONN RCPT 40P 0.05 GOLD SMD R/A

Deep-Dive with AI

DocumentsSFMH-105-02-F-D-LC Datasheet 02 .050" Tiger Eye™ High-Reliability Socket Strip, Horizontal Mount +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFMH-120-02-L-D-LC

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.43 mm
Insulation Height	0.135 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

SFMH-120 Series

Part	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Number of Rows	Current Rating (Amps)	Fastening Type	Contact Finish - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Shape	Termination	Contact Type	Mounting Type	Number of Positions	Connector Type	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish - Post
Samtec Inc. SFMH-120-02-L-D-WT	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Phosphor Bronze	2	2.6 A	Push-Pull	Gold	UL94 V-0	0.05 in	1.27 mm	Black	-55 °C	125 °C	All	10 çin	0.25 çm	Solder Retention	Square	Solder	Female Socket	Surface Mount Right Angle	40	Receptacle	3.43 mm	0.135 "	Flash	Gold
Samtec Inc. SFMH-120-02-L-D	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Phosphor Bronze	2	2.6 A	Push-Pull	Gold	UL94 V-0	0.05 in	1.27 mm	Black	-55 °C	125 °C	All	10 çin	0.25 çm		Square	Solder	Female Socket	Surface Mount Right Angle	40	Receptacle	3.43 mm	0.135 "	Flash	Gold
Samtec Inc. SFMH-120-02-LM-D	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Phosphor Bronze	2	2.6 A	Push-Pull	Gold	UL94 V-0	0.05 in	1.27 mm	Black	-55 °C	125 °C	All	10 çin	0.25 çm		Square	Solder	Female Socket	Surface Mount Right Angle	40	Receptacle	3.43 mm	0.135 "		Tin
Samtec Inc. SFMH-120-02-L-D-TR	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Phosphor Bronze	2	2.6 A	Push-Pull	Gold	UL94 V-0	0.05 in	1.27 mm	Black	-55 °C	125 °C	All	10 çin	0.25 çm		Square	Solder	Female Socket	Surface Mount Right Angle	40	Receptacle	3.43 mm	0.135 "	Flash	Gold
Samtec Inc. SFMH-120-02-L-D-LC-TR	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Phosphor Bronze	2	2.6 A	Push-Pull	Gold	UL94 V-0	0.05 in	1.27 mm	Black	-55 °C	125 °C	All	10 çin	0.25 çm		Square	Solder	Female Socket	Surface Mount Right Angle	40	Receptacle	3.43 mm	0.135 "	Flash	Gold
Samtec Inc. SFMH-120-02-F-D-LC-TR	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Phosphor Bronze	2	2.6 A	Push-Pull	Gold	UL94 V-0	0.05 in	1.27 mm	Black	-55 °C	125 °C	All	3 µin	0.076 µm		Square	Solder	Female Socket	Surface Mount Right Angle	40	Receptacle	3.43 mm	0.135 "	Flash	Gold
Samtec Inc. SFMH-120-02-L-D-LC	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Phosphor Bronze	2		Push-Pull	Gold	UL94 V-0	0.05 in	1.27 mm	Black	-55 °C	125 °C	All	10 çin	0.25 çm		Square	Solder	Female Socket	Surface Mount Right Angle	40	Receptacle	3.43 mm	0.135 "	Flash	Gold
Samtec Inc. SFMH-120-02-F-D-WT	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Phosphor Bronze	2	2.6 A	Push-Pull	Gold	UL94 V-0	0.05 in	1.27 mm	Black	-55 °C	125 °C	All	3 µin	0.076 µm	Solder Retention	Square	Solder	Female Socket	Surface Mount Right Angle	40	Receptacle	3.43 mm	0.135 "	Flash	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 11.74
		10	$ 10.85
		25	$ 10.25
		50	$ 9.88
		100	$ 9.22

Description

General part information

SFMH-120 Series

40 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold

SFMH-120-02-L-D-LC

Deep-Dive with AI

SFMH-120-02-L-D-LC

Deep-Dive with AI

Technical Specifications

SFMH-120 Series

Pricing

Description

SFMH-120 Series

Documents

SFMH-105-02-F-D-LC Datasheet 02

.050" Tiger Eye&#8482; High-Reliability Socket Strip, Horizontal Mount

Datasheet

SFMH-120 Series

.050" Tiger Eye™ High-Reliability Socket Strip, Horizontal Mount
