Q-2000V0005001M

Active

Amphenol Custom Cable

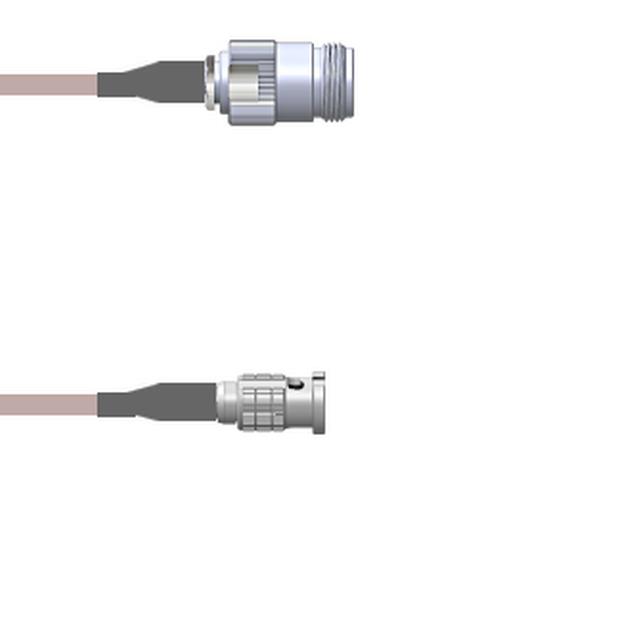

CBL ASSY HDBNC-NTYPE PL-JK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2000V0005001M

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE PL-JK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2000V0005001M

1st Connector	HD-BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2000V0 Series

Part	2nd Connector Mounting Type	Overall Impedance	Cable Type	2nd Contact Gender	1st Connector	Features	Color	1st Contact Gender	Length	Length	Length	1st Connector Mounting Type	2nd Connector	Style	Frequency - Max [Max]	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2000V0005001M	Free Hanging (In-Line)	50 Ohms	RG-316	Female	HD-BNC Plug	Shielded	Copper	Male	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz
Amphenol Custom Cable Q-2000V0003003i	Free Hanging (In-Line)	50 Ohms	RG-174	Female	HD-BNC Plug	Shielded	Black	Male	76.2 mm		3 in	Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz
Amphenol Custom Cable Q-2000V0005018i	Free Hanging (In-Line)	50 Ohms	RG-316	Female	HD-BNC Plug	Shielded	Copper	Male				Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2000V0003006i	Free Hanging (In-Line)	50 Ohms	RG-174	Female	HD-BNC Plug	Shielded	Black	Male	152.4 mm		6 in	Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz
Amphenol Custom Cable Q-2000V0005048i	Free Hanging (In-Line)	50 Ohms	RG-316	Female	HD-BNC Plug	Shielded	Copper	Male	1200 mm	4 ft	48 in	Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz
Amphenol Custom Cable Q-2000V0005.25M	Free Hanging (In-Line)	50 Ohms	RG-316	Female	HD-BNC Plug	Shielded	Copper	Male				Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz		250 mm	9.843 "
Amphenol Custom Cable Q-2000V0003036i	Free Hanging (In-Line)	50 Ohms	RG-174	Female	HD-BNC Plug	Shielded	Black	Male	91.44 cm		36 in	Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz
Amphenol Custom Cable Q-2000V0003002M	Free Hanging (In-Line)	50 Ohms	RG-174	Female	HD-BNC Plug	Shielded	Black	Male	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz
Amphenol Custom Cable Q-2000V0005012i	Free Hanging (In-Line)	50 Ohms	RG-316	Female	HD-BNC Plug	Shielded	Copper	Male	304.8 mm		12 "	Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz
Amphenol Custom Cable Q-2000V0003024i	Free Hanging (In-Line)	50 Ohms	RG-174	Female	HD-BNC Plug	Shielded	Black	Male	609.6 mm		24 "	Free Hanging (In-Line)	N-Type Jack	HD-BNC to N-Type	6000 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.78
		25	$ 80.18
		50	$ 78.58
		100	$ 76.98
		250	$ 75.38

Description

General part information

Q-2000V0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-316 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
