Technical Specifications
Parameters and characteristics for this part
| Specification | 5101FE 0081000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.249 in |
| Jacket (Insulation) Diameter [diameter] | 6.32 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.432 mm |
| Jacket (Insulation) Thickness | 0.017 in |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 3 |
| Ratings | UL Style CL3R |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Sound, Security |
| Voltage | 300 V |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.31 | |
Description
General part information
5101FE Series

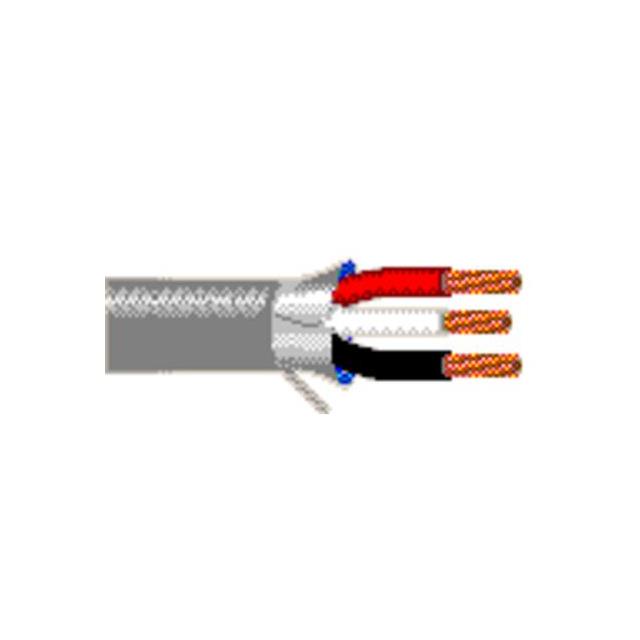

3 Conductor Multi-Conductor Cable Gray 14 AWG Foil 1000.0' (304.8m)
