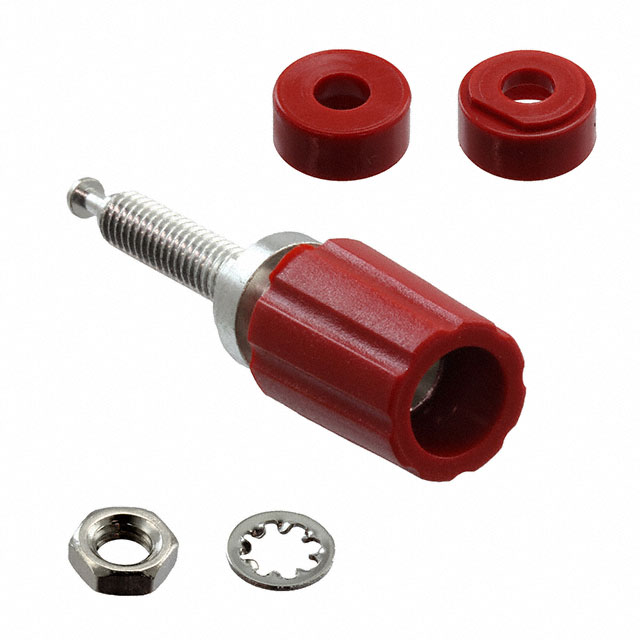

Specification	3760-2#

Color	Red
Cross Hole Diameter	0.096 in
Current Rating	15 A
Head Size (OD)	0.44 in
Head Style	Knurled
Material - Body	Brass
Material - Insulation	PC, Polycarbonate
Nut Material	Brass
Nut Plating	Nickel
Panel Thickness (Max)	0.25 in
Panel Thickness (Min)	0.07 in
Plating - Body	Tin
Termination	Threaded and Turret
Termination Thread	8-32
Type	Standard
Voltage Rating	70VDC, 33Vrms
Voltage Rating (AC)	33 Vrms
Voltage Rating (DC)	70 VDC

3760 Series

Part	Nut Plating	Cross Hole Diameter	Panel Thickness (Min)	Panel Thickness (Max)	Head Size (OD)	Voltage Rating	Voltage Rating (AC)	Voltage Rating (DC)	Material - Insulation	Nut Material	Material - Body	Termination	Plating - Body	Head Style	Termination Thread	Color	Current Rating	Type
Pomona Electronics 3760-7	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	Violet	15 A	Standard
Pomona Electronics 3760-1	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	Brown	15 A	Standard
Pomona Electronics 3760-4	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	Yellow	15 A	Standard
Pomona Electronics 3760-3	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	Orange	15 A	Standard
Pomona Electronics 3760-0	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	Black	15 A	Standard
Pomona Electronics 3760-0#	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	Black	15 A	Standard
Pomona Electronics 3760-2	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	Red	15 A	Standard
Pomona Electronics 3760-9	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	White	15 A	Standard
Pomona Electronics 3760-8	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	Gray	15 A	Standard
Pomona Electronics 3760-5	Nickel	0.096 in	0.07 in	0.25 in	0.44 in	33Vrms 70VDC	33 Vrms	70 VDC	PC Polycarbonate	Brass	Brass	Threaded and Turret	Tin	Knurled	8-32	Green	15 A	Standard
