MAX9796EBX+TG45

Active

Analog Devices Inc./Maxim Integrated

IC AMP CLASS D MONO 2.3W 36UCSP

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC AMP CLASS D MONO 2.3W 36UCSP

Technical Specifications

Parameters and characteristics for this part

Specification	MAX9796EBX+TG45

Features	Short-Circuit and Thermal Protection, I2C, Differential Inputs, Shutdown, Depop, Volume Control, Mute
Max Output Power x Channels @ Load [custom]	2.3 W
Max Output Power x Channels @ Load [custom]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono) with Stereo Headphones

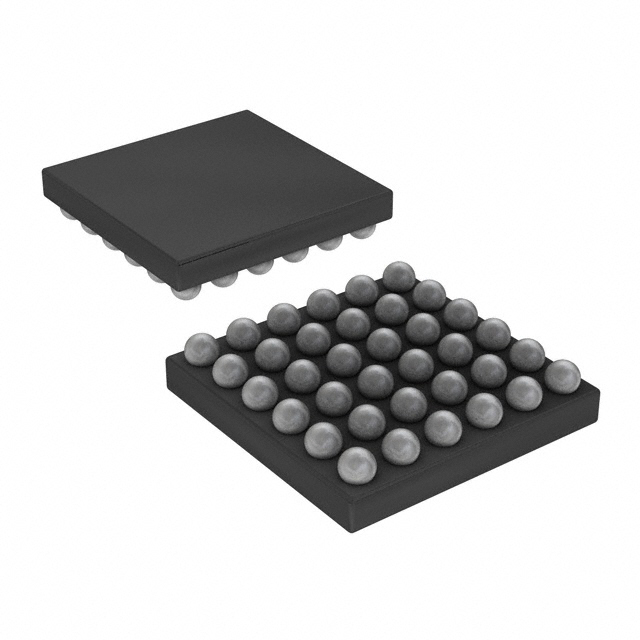

Package / Case	36-WFBGA, CSPBGA
Supplier Device Package	36-UCSP (3x3)
Type	Class D
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC AMP CLASS D MONO 2.3W 36UCSP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [custom]	Features	Package / Case	Supplier Device Package
Analog Devices Inc./Maxim Integrated MAX9796EBX+TG45	85 °C	-40 °C	Surface Mount	Class D	2.7 V	5.5 V	1-Channel (Mono) with Stereo Headphones	2.3 W	1	Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control	36-WFBGA, CSPBGA	36-UCSP (3x3)

General part information

Amplifier IC 1-Channel (Mono) with Stereo Headphones Class D 36-UCSP (3x3)
