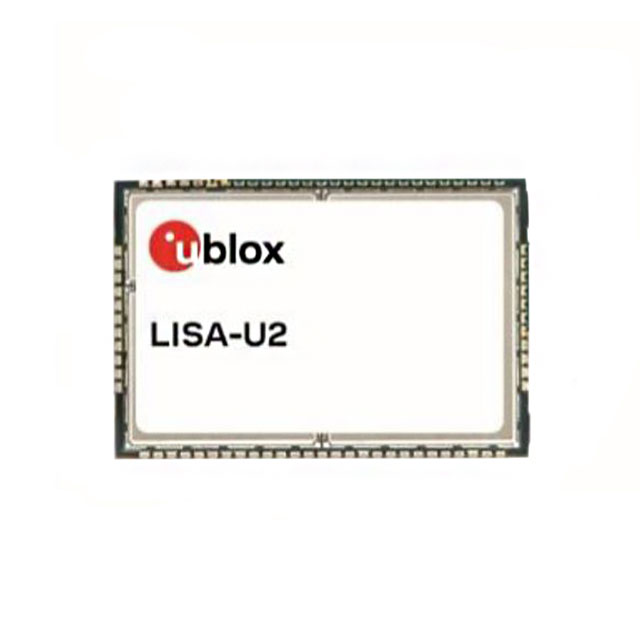

LISA-U200-62S
Obsoleteu-blox
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Search across all available documentation for this part.
LISA-U200-62S
Obsoleteu-blox
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LISA-U200-62S |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 550 mA |
| Current - Transmitting | 550 mA |
| Frequency | 2100 MHz, 1.7 GHz, 800 MHz, 900 MHz, 850 MHz, 1900 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 76-SMD Module |
| Power - Output | 35 dBm |
| Protocol | EDGE, UMTS, GPRS, HSPA |
| RF Family/Standard | Cellular |
| Sensitivity | -112 dBm |
| Serial Interfaces | UART, I2C, GPIO, USB, SPI |
| Voltage - Supply [Max] | 4.4 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 101.54 | |
| Digi-Reel® | 1 | $ 101.54 | ||
Description
General part information
LISA Series
Cellular EDGE, GPRS, HSPA, UMTS Transceiver Module 800MHz, 850MHz, 900MHz, 1.7GHz, 1.9GHz, 2.1GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
