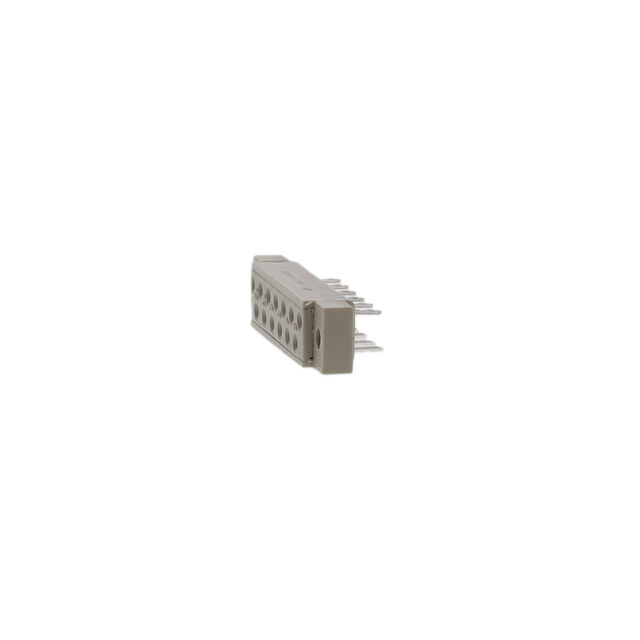

102A10019X

Obsolete

Amphenol CONEC

CONN DIN RCPT 13POS PNL MNT GOLD

Search across all available documentation for this part.

Obsolete

Amphenol CONEC

CONN DIN RCPT 13POS PNL MNT GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

13 Position Din Connector Receptacle, Female Sockets Gold Panel Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	102A10019X	102A100 Series

Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Current Rating (Amps)	2 A	2 A
Level, Class	3	3
Material - Insulation	Polycarbonate, Glass Filled	Polycarbonate, Glass Filled
Material Flammability Rating	UL94 V-1	UL94 V-1
Mounting Type	-	Through Hole
Number of Positions	13	13 - 31
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch	-	0.098 in
Pitch	-	2.5 mm
Termination	Solder Lug	Solder, Solder Lug

CONN DIN RCPT 31POS PCB GOLD

Part	Current Rating (Amps)	Number of Rows	Level, Class	Number of Positions Loaded	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish Thickness	Contact Finish	Mounting Type	Material - Insulation	Connector Type	Material Flammability Rating	Pitch [x]	Pitch [x]
Amphenol CONEC 102A10089X	2 A	2	3	All	Solder	-25 °C	85 °C	31	Flash	Gold	Through Hole	Polycarbonate, Glass Filled	Receptacle, Female Sockets	UL94 V-1
Amphenol CONEC 102A10079X	2 A	2	3	All	Solder	-25 °C	85 °C	21		Gold	Through Hole	Polycarbonate, Glass Filled	Receptacle, Female Sockets	UL94 V-1
Amphenol CONEC 102A10039X		2	3	All	Solder Lug			31		Gold		Polycarbonate, Glass Filled	Receptacle, Female Sockets	UL94 V-1	0.098 in	2.5 mm
Amphenol CONEC 102A10099X	2 A	2	3	All	Solder	-25 °C	85 °C	31		Gold	Through Hole	Polycarbonate, Glass Filled	Receptacle, Female Sockets	UL94 V-1
Amphenol CONEC 102A10059X	2 A	2	3	All	Solder	-25 °C	85 °C	13		Gold	Through Hole	Polycarbonate, Glass Filled	Receptacle, Female Sockets	UL94 V-1
Amphenol CONEC 102A10029X	2 A	2	3	All	Solder Lug	-25 °C	85 °C	21	Flash	Gold		Polycarbonate, Glass Filled	Receptacle, Female Sockets	UL94 V-1
Amphenol CONEC 102A10019X	2 A	2	3	All	Solder Lug	-25 °C	85 °C	13	Flash	Gold		Polycarbonate, Glass Filled	Receptacle, Female Sockets	UL94 V-1
