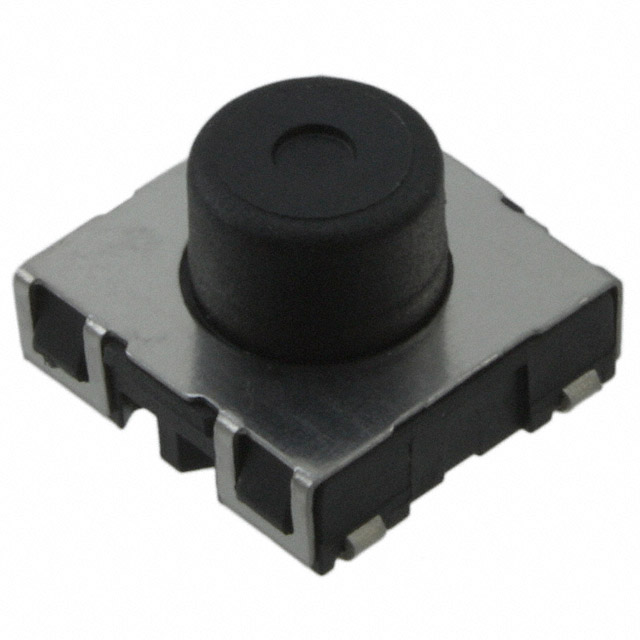

1241.1619.11

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 42V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 42V

Technical Specifications

Parameters and characteristics for this part

SWITCH TACTILE SPST-NO 0.05A 42V

Part	Operating Force	Circuit	Actuator Orientation	Features	Mechanical Life	Termination Style	Switch Travel	Actuator Material	Actuator Type	Mounting Type	Illumination	Contact Rating @ Voltage	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Switch Function
SCHURTER Inc. 1241.1619.11	220 gf	SPST-NO	Top Actuated	Tactile Feedback	1000000 Cycles	J Lead	0.35 mm	Polyphenylene Sulfide (PPS)	Standard	Surface Mount	Non-Illuminated	0.05 A, 42 VDC	IP67 - Dust Tight, Waterproof	85 °C	-40 °C	11.4 mm	11.4 mm	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
