L77DFA15S1AON

Active

Amphenol ICC (Commercial Products)

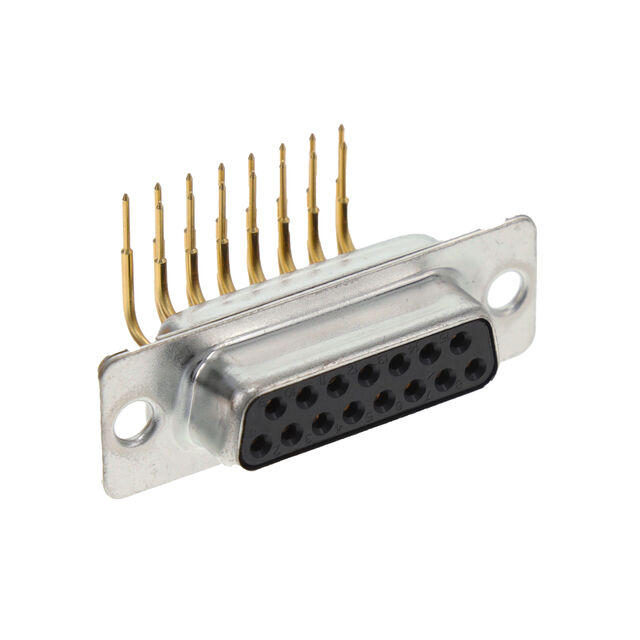

CONN D-SUB RCPT 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77DFA15S1AON

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77DFA15S1AON

Backset Spacing	0.406 in
Backset Spacing	10.3 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	300 VDC

L77DFA15 Series

Part	Contact Type	Connector Style	Flange Feature	Contact Finish	Dielectric Material	Number of Rows	Number of Positions	Mounting Type	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Voltage Rating	Color	Shell Size, Connector Layout	Connector Type	Features	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L77DFA15SOL2RM8	Signal	D-Sub	Female Screwlock (4-40) Mating Side	Gold	Thermoplastic Glass Filled	2	15	Panel Mount Through Hole	Copper Alloy	Solder	-55 °C	125 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Receptacle Female Sockets
Amphenol ICC (Commercial Products) L77DFA15POL2	Signal	D-Sub	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	2	15	Panel Mount Through Hole	Brass	Solder	-55 °C	155 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Male Pins Plug	Grounding Indents
Amphenol ICC (Commercial Products) L77DFA15SMP10VF	Signal	D-Sub	Female Screwlock (4-40) Mating Side	Gold	Thermoplastic Glass Filled	2	15		Copper Alloy		-55 °C	155 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Receptacle Female Sockets
Amphenol ICC (Commercial Products) L77DFA15S1BUN	Signal	D-Sub	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	2	15	Panel Mount Right Angle Through Hole	Copper Alloy	Solder	-55 °C	155 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Receptacle Female Sockets	Mounting Brackets	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DFA15S1AON	Signal	D-Sub	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	2	15	Panel Mount Right Angle Through Hole	Copper Alloy	Solder	-55 °C	125 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Receptacle Female Sockets		0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DFA15S1BMN	Signal	D-Sub	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	2	15	Panel Mount Right Angle Through Hole	Copper Alloy	Solder	-55 °C	125 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Receptacle Female Sockets	Mounting Brackets	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DFA15S1AUN	Signal	D-Sub	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	2	15	Panel Mount Right Angle Through Hole	Copper Alloy	Solder	-55 °C	125 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Receptacle Female Sockets	Mounting Brackets	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DFA15SAJ4RM6VF	Signal	D-Sub	Female Screwlock (4-40) Mating Side	Gold	Thermoplastic Glass Filled	2	15	Panel Mount Right Angle Through Hole	Copper Alloy	Solder	-55 °C	125 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Receptacle Female Sockets	Board Lock Mounting Brackets	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L77DFA15S1BON	Signal	D-Sub	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	2	15	Panel Mount Right Angle Through Hole	Copper Alloy	Solder	-55 °C	125 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Receptacle Female Sockets		0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DFA15P	Signal	D-Sub	Housing/Shell (Unthreaded)	Gold	Thermoplastic Glass Filled	2	15		Brass		-55 °C	155 °C	7.5 A	0.51 µm	20 µin	UL94 V-0	300 VDC	Black	2	Male Pins Plug	Grounding Indents
