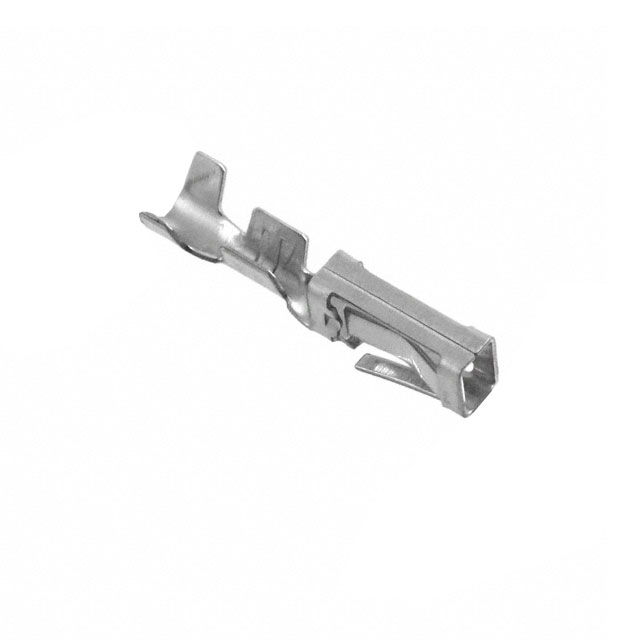

102100-5
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-22AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102100-5
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-22AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 102100-5 | 102100 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | 16 µin | 16 - 30 µin |
| Contact Finish Thickness | 0.41 µm | 0.41 - 0.76 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.20 | |||
| 2500 | $ 0.20 | |||
| Tape & Reel (TR) | 5000 | $ 0.20 | ||
| 10000 | $ 0.19 | |||
102100 Series
CONN SOCKET 18-22AWG CRIMP TIN
Description
General part information
102100 Series
Socket Contact Tin 18-22 AWG Crimp
